ESU 50709 Innenbeleuchtungs-Set incl. Decoder, 255mm

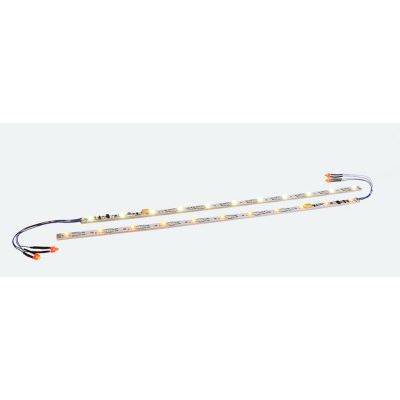

The 255mm long, 9mm slim LED lights with 11 LEDs are intended for digital railway enthusiasts in N, TT or H0 gauges. As is usual with ESU interior lighting, the brightness, which can be adjusted using a potentiometer, remains constant regardless of the track voltage thanks to the built-in constant voltage supply. To prevent flickering, a PowerPack can be connected if required.The lighting board can be individually shortened and adapted to the length of the carriage. It is supplied with a red tail light.

The integrated ESU decoder can be used with Motorola® and DCC and also works on analog DC systems. The operating mode is recognized fully automatically. The brightness can be set individually by software, starting from the basic brightness preset by the setting controller. Various realistic lighting effects such as soft dimming, neon tube effect, defective neon tube, battery lighting and much more ensure a realistic result. The 11 LEDs are divided into several groups that can be switched individually. Function mapping allows the LEDs to be freely assigned to the desired function buttons. Two additional outputs can be used either as tail lights or for changing the light of a control car.Of course, all effects can also be programmed when installed. Alternatively, you can also read out the digital interior lighting on the programming track.The separation points are arranged at 24 mm intervals.

Features:

• Digital interior lighting set with integrated digital decoder + tail light
• 255 mm
• Divisible
• PowerPack option
• 11 LEDS
• yellow

Specs:

• Gauge: All
• Type: Construction kit

Instruction manual / Safety instructions:

• Manual (149.09 KB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
