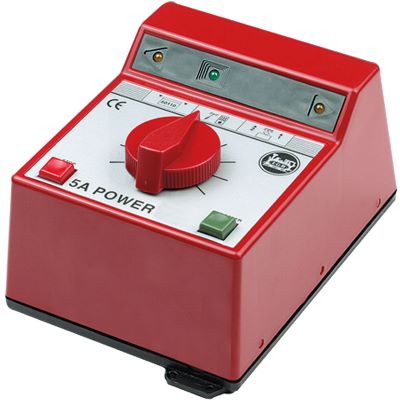

LGB 51079 Elektronischer drive controller 5A

L51079 Electronic speed controller 5A



Electronic speed controller, 5 A

This new electronic speed controller for analog operation offers the latest technology with high traction current and modern features for your analog operated LGB layout: max. 5 A traction current, suitable for use with any LGB transformer (DC or AC) (recommended for the 100 Watt switching power supply 51095. Very sensitive control and smoothed DC voltage. Of course convertible for radio remote control (with LGB 55050/55055). Adjustable control range: +/- 135° with zero setting in the center / booster button with programmable acceleration, stop/halt button. LED indicators for stop, overload, ready to run and direction of travel. Connections for cables with up to 1.5 mm2 cross-section, fuse against short circuits. Output: 0-24 V DC. Driving current: max. 5 A. Dimensions 160 x 120 x 95 mm.
Replaces item 51070.

Specs:

• Type: Drive controller

Instruction manual / Safety instructions:

• Manual (452.3 KB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
