LGB 55029 Nachrüst-Lokdecoder m.sound

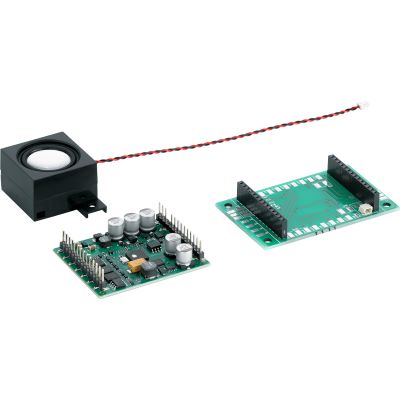

The retrofit sound decoder is suitable for use in digital operation and supports the vehicles (built in 2014) with a 28-pin interface. All older vehicles with the old 10-pin interface can be converted using the interface adapter can be converted. Vehicles that do not have an interface can be retrofitted with the enclosed interface board (65 x 40 mm). A loudspeaker box is also included in the scope of delivery. The new decoder offers considerably more functions and programming options than the previous ones. It is possible to access the extensive sound library via the Internet, which has been specially expanded for this purpose. has been extended to include a large number of well-known LGB models and is constantly being added to.

Features:

• Decoder with sound
• Suitable for use in digital operation
• Supports vehicles with a 28-pin interface
• Interface adapter supports vehicles with 10-pin interface
• Vehicles without an interface can be easily converted
• Total load capacity max. 10 A
• Audio power (sound) 6.7 W/4 Ω
• 14 or 28 (128) speed steps
• Analog and digital load control adaptable to different locomotive types
• Parallel control for all light and function outputs
• Programmable flashing light and short-time functions

Specs:

• Gauge: G
• Type: 1

Instruction manual / Safety instructions:

• Manual (1.78 MB)
