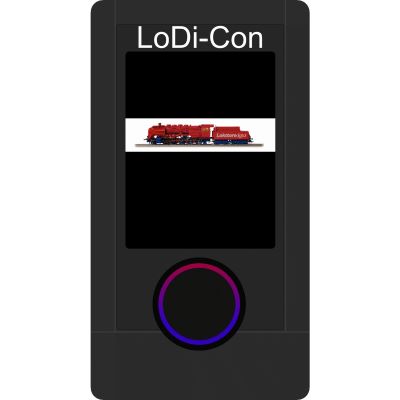

Lokstoredigital LoDi025B LoDi-Con Batterievariante (ohne Batterien)

The handheld controller from Lokstoredigital is finally here. Thanks to its powerful W-Lan antenna, the LoDi-Con can communicate with and control all common command stations. The protocol used is of secondary importance. The important thing is that the control panel can be reached via an IP address in the network.

Since the LoDi-Con has WLAN and can be easily integrated into your home network or even communicate directly with control panels if they have an integrated WLAN module, the possibilities for integrating it are vast. You can be connected to up to five control panels at the same time. Several common protocols are already available.

Control your locomotives conveniently via the controller.

Switch turnout routes at the touch of a button.

Play or do what you want - the LoDi-Con takes care of the details.

Features:

• Easy operation via capacitive touch screen and incremental rotary knob
• Visual feedback via the rotary knob for speed levels, short circuit and much more
• Full integration of LoDi components
• Connection to several control centers simultaneously via WLAN possible
• Drive locomotives and manage them in a locomotive database
• Display of own locomotive images
• Double and multiple traction
• Switching of points, signals and turnout routes
• Model time display
• CV programming in plain text on the programming and main track (PoM)
• Feedback monitor
• Locking of functions via a password
• Up to 68 locomotive functions
• Club mode
• Integration into the LoDi-ProgrammerFX

Supported control panels and protocols:

• LoDi Rector
• LoDi-Shift-Commander
• LoDi-S88-Commander
• z21 and all central units that support the Z21 protocol
• Märklin CS2/3
• XpressNet
• ESU ECoS
• WiThrottle
• Loconet (in preparation)

Technical data:

• Display: 3.2" TFT LCD display with capacitive touch, resolution 240x320 pixels
• Rotary control: Pulse encoder with 24 steps + push button
• WLAN: IEEE 802.11 with 2.4 GHz b/g/n
• Batteries: AAA alkaline, NiMH or Li Ion (not included)
• Dimensions: 136 x 74 x 46 mm
• Weight: 180g

Specs:

• Type: Accessories

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
