Lux Modellbau 9124 H0 MLR-1 Mittelleiterreinigungs-Einsatz analogue and digital, AC

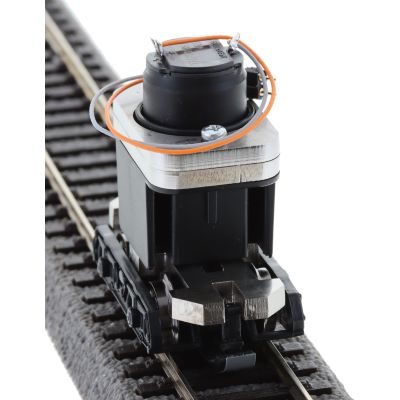

Lux Modellbau 9124 H0 MLR-1 center conductor cleaning insert: Effective cleaning for Märklin systems

The Lux Modellbau 9124 H0 MLR-1 center conductor cleaning insert is an indispensable accessory for model railroaders who use the Märklin alternating current system. This high-quality insert ensures thorough cleaning of the center conductor contacts and thus guarantees smooth operation of your model railway system.

Function and area of application

The MLR-1 insert effectively removes stuck-on oil and dirt residues, deposits caused by traction tire abrasion and oxide layers on the point contacts. This leads to improved current collection and reduces operating faults. The insert shows its strengths particularly in areas that are difficult to access, such as tunnels, staging yards or under overhead lines, as it enables cleaning in places that are difficult to reach manually.

Compatibility and interchangeability

The center conductor cleaning insert is designed as an exchange module for all Lux H0 rail and overhead line grinding trolleys. This enables flexible use and easy integration into existing cleaning systems. The insert is suitable for both analog and digital control systems, which underlines its versatility.

Technical details

The MLR-1 insert was developed in accordance with the standards of European model railroads and is protected by patent. It has a durable and maintenance-free Faulhaber bell-type armature motor which provides the oscillating movement of the grinding shoe. The current consumption is approx. 110 mA, the maximum motor voltage is 5 volts DC and the weight of the insert is approx. 85 g.

Advantages of the MLR-1 center conductor cleaning insert

By using this cleaning module, you significantly increase the operational safety of your model railroad vehicles. A clean center conductor surface ensures reliable current collection, which is particularly important in digital operation. In addition, the maintenance-free operating time of your vehicles is extended, as dirt that can lead to contact problems is effectively removed.

Care and maintenance

The cleaning technology of the MLR-1 is based on an oscillating sanding pad equipped with special cleaning strips. These strips ensure an optimum cleaning effect with minimal static friction. As soon as the cleaning strips become saturated with dirt or worn, they should be replaced to maintain cleaning performance. Replacement polishing material is available in various grit sizes, for example 1500 grit (item no. 9049) or 800 grit (item no. 9050).

Conclusion

The Lux Modellbau 9124 H0 MLR-1 center conductor cleaning insert is a high-quality and effective tool for maintaining your model railway layout. Thanks to its simple integration into existing cleaning systems and effective cleaning performance, it ensures that your trains can always run reliably and trouble-free. Invest in the maintenance of your layout and benefit from permanently smooth operation.

Features:

• Effective removal of oil, dirt and oxide deposits on center conductor contacts
• Compatible with all Lux H0 rail and overhead line grinding trolleys
• Suitable for analog and digital control systems
• Durable and maintenance-free Faulhaber bell-type armature motor
• Current consumption: approx. 110 mA
• Maximum motor voltage: 5 volts DC
• Weight: approx. 85 g
• Replacement polishing material available in various grit sizes

Specs:

• Gauge: H0
• Type: Accessories
