Lux Modellbau 9670 N Set bestehend aus 9070 + 9470 Product Details

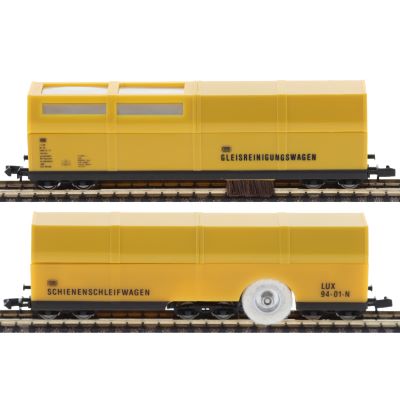

With item no. 9670, Lux presents a 2-part set with which you can keep your N model layout cleaner. The set contains the Lux track vacuum cleaner trolley (item no. 9070), the rail grinding trolley (item no. 9470).

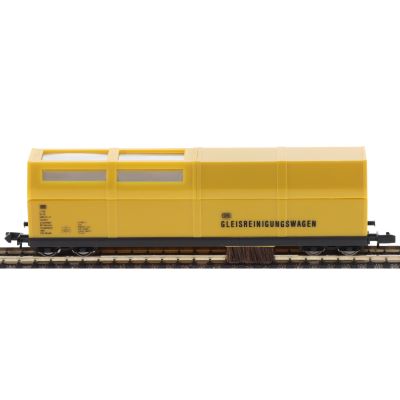

The mobile and fully functional Lux track vacuum cleaner trolley (item no. 9070) for all N-gauge track and control systems has been specially designed to remove loose dust and dirt particles from the entire track area.
Lux track vacuum cleaner trolley Features:
- Removes loose dust and dirt particles from the track bed
- power supply via the traction voltage
- innovative control electronics SSF-09 works motion-oriented
- brush frame can be replaced on the chassis floor
- the dirt particles are fed into a collection container through the suction nozzle
- Power supply 0-25 Volt DC
- Current consumption approx. 30mA
- max. motor voltage 5 Volt DC
- Standard coupling according to NEM 256
- Length over buffer 115.5 mm
- Width 21.7 mm
- Height above top of rail 31.5 mm

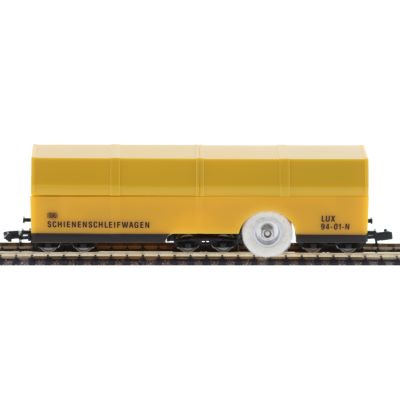

Lux rail grinding carriage Features:
- removes stuck oil and dirt residues on the rail
- Power supply via the traction voltage
- innovative control electronics SSF-09 works motion-oriented
- Equipped with felt probes as standard
- High-speed cleaning technology rotates over the rail head
- Power supply 0-25 Volt DC
- Current consumption approx. 200 mA
- max. motor voltage 2 Volt DC
- Standard coupling NEM 356
- Length over buffer 111 mm
- Width 21.8 mm
- Height above top of rail 31.5 mm
Specs:
- Gauge: N
- News: 2024
- Type: Freight cars
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
Lux Modellbau 9670 N Set bestehend aus 9070 + 9470 Sets
Frequently asked questions
| Question: | Which layouts is the Lux Modellbau 9670 cleaning set suitable for? |
| Answer: | The set is designed for N scale model railway layouts at a scale of 1:160. It can be used on analogue and digital layouts, provided the track voltage meets the stated technical requirements. |
| Question: | Which vehicles are included in the set? |
| Answer: | The set combines the 9070 track vacuum cleaner car with the 9470 rail cleaning car. Together, they remove loose dirt from the track area and more persistent deposits from the rail surfaces. |
| Question: | How does the track vacuum cleaner car work? |
| Answer: | The vacuum cleaner car collects dust and loose particles through a suction nozzle and stores them in a removable container. The brush insert underneath the vehicle can be replaced when required. |
| Question: | What is the function of the rail cleaning car? |
| Answer: | The rail cleaning car uses rotating felt discs to remove oil and dirt residues from the railheads. The cleaning discs can be replaced when worn or adapted to different cleaning tasks. |
| Question: | How are the cleaning cars powered? |
| Answer: | Both cars receive power from the track and are designed for a stated range of 0 to 25 V DC. Faulhaber motors and SSF-09 control electronics support automatic starting and stopping. |
