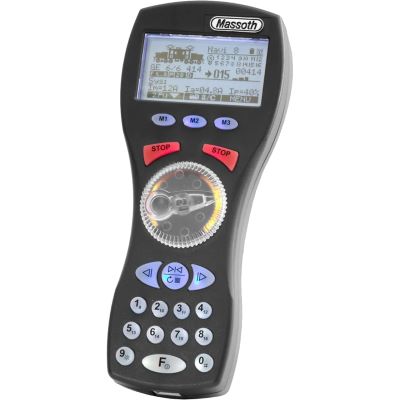

Massoth 8134802 DiMax Navigator 2.4GHz (Black Edition)

Enjoy limitless freedom with the DiMAX Navigator. This hand controller offers a range of functions that goes far beyond the previous operating options of a hand controller. A highlight is that at the same time, for example, locomotives can be controlled and switches can be switched. For a high level of playing fun, the housing has been optimally shaped according to ergonomic aspects and the center of gravity has been balanced so that it fits perfectly in the hand. Due to the symmetrical cross-section of the housing, the DiMAX Navigator is equally well suited for left- and right-handers and can be operated optimally.

A large and clear graphic display with a backlight provides comprehensive information, in a freely selectable language to the currently controlled locomotive. Furthermore, this handheld controller is equipped with a switchable and dimmable blue/white keyboard illumination, which ensures round-the-clock operation. The rotary knob is illuminated in different colors depending on the function. All locomotives available on the market from large series manufacturers can be displayed on the LCD with the appropriate symbol and an individual name. Likewise, the individual functions, light symbol as well as the current speed level are shown on the display.

Since 2019, the DiMAX Navigator is delivered with 2.4GHz radio technology. The 2.4GHz radio system allows international use and reduces the product variety to one transmitter. The range is comparable to the previous radio system. The DiMAX Navigators 8134801 are already equipped with a 2.4GHz radio chip onboard ex works, a radio interface is no longer available. All navigators on the market so far can be equipped with the retrofit transmitter 8131901. Thus, the navigators are also in the future on the latest technical level.

Features:

• easy operation, ergonomically designed
• large, easy to read graphic display
• adjustable backlight
• easy to read in sunlight
• suitable for left- and right-handers
• over 10 language packs available for download
• German and English manual
• easy to use for children (incl. child lock)
• illuminated rotary knob with status recognition
• individual locomotive name per address
• 2 operating modes for the rotary knob
• for NMRA/DCC and Motorola operation
• 14/28/128 speed steps
• 99 functions per locomotive (F0 to F28 + 60 BS)
• parallel and serial function data
• up to 240 locomotive images (narrow and standard gauge)
• control 2 locos at the same time
• 2 STOP buttons (programmable STOP commands)
• radio and cable operation possible (system dependent)
• different programming modes
• display of system performance, system load
• turnout switching commands (with history)
• up to 32 turnout routes programmable

Specs:

• Type: Radio System
