MTB DP4 Underfloor Drive, Digital

Are you looking for a digital under-turntable turnout motor with slow movement and simple DCC control?

The MTB DP4 Digital Under-Table Turnout Motor is an under-table turnout motor for model railroaders who want to conveniently control turnouts digitally. The motor is designed for easy installation and control of turnouts via DCC. This eliminates the need for a separate DCC decoder accessory that would otherwise have to be purchased, installed, and configured.

The MTB DP4 is particularly well-suited for layouts where slow movement and higher thrust are desired. The motor operates smoothly rather than abruptly, making it ideal for model railroaders who value controlled and even turnout movement.

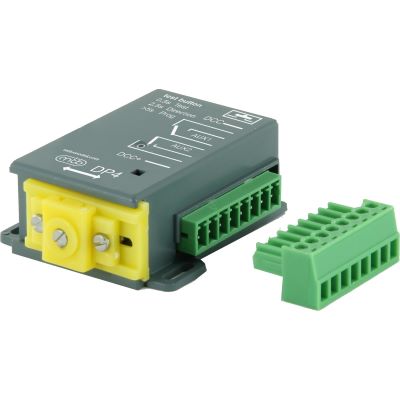

MTB DP4 Digital Underfloor Turnout Motor

The exact product name is MTB DP4 Digital Underfloor Turnout Motor. The motor is designed as a universal drive and can replace both electromagnetic and motor-driven types. Thus, the DP4 offers a flexible solution for various applications in model railroading.

The turnout motor features 4 stroke range settings. The available settings are 3 mm, 6 mm, 9 mm, and 12 mm. This selection allows for adaptation to different requirements during switch operation and makes the motor highly versatile.

DCC interface for command reception and power supply

The DP4 turnout motor is equipped with a DCC interface. This interface handles both digital command reception and power supply for turnout operation. This makes control via DCC particularly direct and straightforward.

Since the DCC function is already integrated into the motor, no separate decoder accessories are required. This significantly simplifies the planning, installation, and commissioning of the turnout control system.

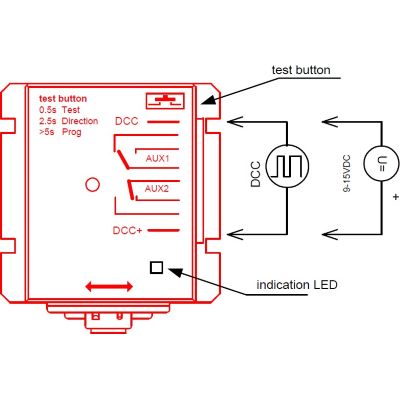

Integrated contacts and easy installation

The MTB DP4 features a dual changeover contact. In addition, the motor has two AUX1/AUX2 auxiliary switching contacts. These are used for indication and to supply power to the switch heart.

For easy installation, the motor is equipped with a removable plug connector. The indicator LED signals the current status. An auxiliary button is available for configuration and testing. This makes the MTB DP4 not only functional but also designed for practical use.

Purchase Recommendation

If you’re looking for a digital underfloor turnout motor that combines DCC command reception and power supply in a single unit, the MTB DP4 digital underfloor motor is a suitable choice. With slow movement, higher thrust, four adjustable stroke ranges, an integrated double changeover contact, and a detachable connector, this motor offers a well-designed solution for digital turnout control. Add the MTB DP4 to your model railroad layout now and conveniently control your turnouts via DCC.

Features:

• Manufacturer: MTB
• Product Name: DP4 Digital Under-Table Drive
• Product Type: Under-table turnout drive
• Digital version
• With DCC interface
• DCC interface for digital command reception
• DCC interface for power supply during switch operation
• Slow movement
• Higher thrust force
• Universal actuator
• Replaces electromagnetic and motor-driven types
• 4 stroke range settings
• Stroke range: 3 mm
• Stroke range: 6 mm
• Stroke range: 9 mm
• Stroke range: 12 mm
• Integrated dual changeover contact
• Easy installation
• Removable connector
• Two AUX1/AUX2 auxiliary contacts
• Auxiliary contacts for indication
• Auxiliary contacts for powering the turnout
• LED indicator for signaling states
• Auxiliary button for configuration
• Auxiliary button for testing
• Designed for easy installation and control of turnouts via DCC
• No separate DCC decoder accessories required

Specs:

• Gauge: All
• Type: Railroad switch
