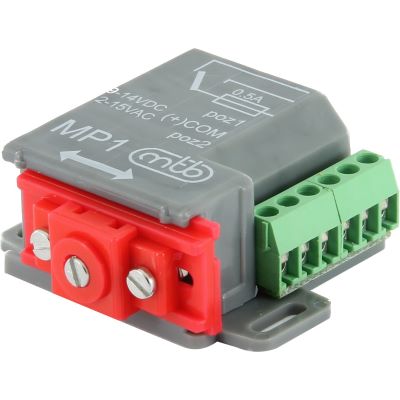

MTB MP1 Unterflurantrieb

MTB MP1 Underfloor Motor – Compact Motor for Turnouts and Signals

Are you looking for a reliable underfloor motor that can be flexibly used for turnouts, signals, or other moving elements on your model railway layout? The MTB MP1 underfloor motor is a compact and versatile solution that can be discreetly mounted beneath the layout and ensures precise movements.

With its compact design, this motor is particularly well-suited for layouts with limited space. At the same time, it offers reliable mechanics and easy adaptation to various requirements in model railway operation.

Versatile for use with turnouts and signals

The MP1 under-table drive can be used for various applications. In addition to classic turnout control, it is also suitable for signals or other moving components on the layout.

Since it is mounted under the layout, the technology remains hidden, while only the realistic movement of the turnout or signal is visible on the surface.

Adjustable stroke for different applications

The drive has three adjustable stroke settings: 3 mm, 6 mm, and 9 mm. This allows the travel distance to be precisely adjusted to the specific application. This flexibility makes the MP1 particularly versatile.

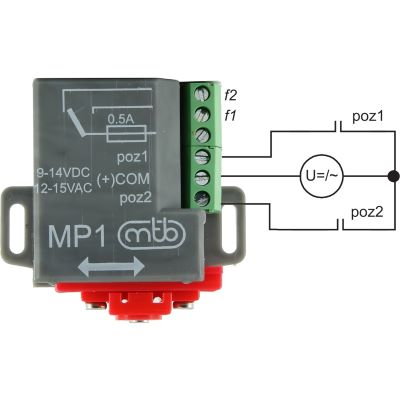

Power is supplied via AC or DC from 8 to 16 volts with a current consumption of approximately 150 mA.

Exclusive spring steel wire for TT and N

In addition to the standard 1.2 mm spring steel wire included, an exclusive 0.8 mm spring steel wire is also provided. This wire is approximately 6.2 cm long and is particularly well-suited for smaller gauges such as TT and N.

This allows the underfloor drive to be flexibly adapted to various model railway gauges.

Compact design for easy installation

With its compact dimensions, the MTB MP1 can be easily mounted under the layout. Despite its small size, the motor offers reliable performance and is suitable for many different layout concepts.

Whether for new layouts or for retrofitting existing turnouts—this underfloor motor is a practical solution for precise motion control.

Features:

• Underfloor motor for turnouts, signals, etc.
• Adjustable stroke: 3 mm, 6 mm, 9 mm
• Power supply: AC/DC 8–16 V
• Current consumption: approx. 150 mA
• Spring steel wire 1.2 mm
• Spring steel wire 0.8 mm (length approx. 6.2 cm)
• Dimensions: 34 x 28 x 17 mm
• Gauge: all

Specs:

• Gauge: All
• Type: 1

Instruction manual / Safety instructions:

• Manual (92.31 KB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
