Piko 56518 PSD XP 5.1 F Next18, multiprotokoll

Piko 56518 PSD XP 5.1 F Next18 - Versatile function decoder with multi-protocol

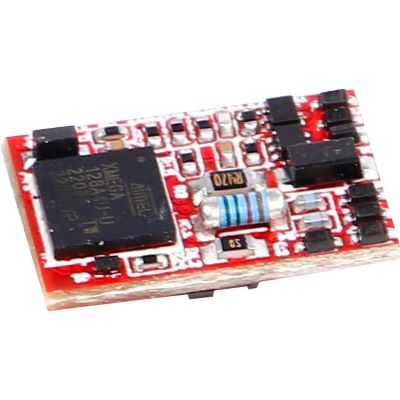

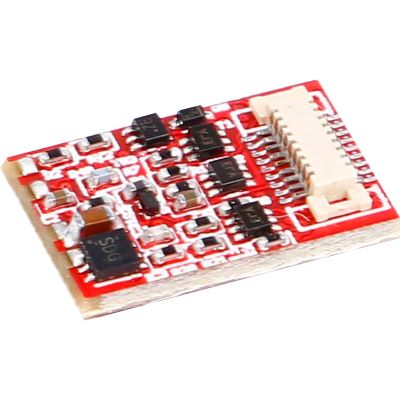

The Piko 56518 PSD XP 5.1 F is a modern Next18 function decoder specially developed for Piko cars and lighting boards with Next18 interface. With support for various digital formats and a variety of function outputs, this decoder offers maximum flexibility for operation on your model railroad layout. Thanks to its compact design, it also fits perfectly into tight installation spaces.

Multi-protocol compatibility for maximum flexibility

The Piko SmartDecoder XP 5.1 F supports the common digital protocols DCC, RailComPlus® and Motorola®. This versatility enables problem-free use on various model railroad digital command stations. The decoder automatically recognizes the protocol and adapts accordingly, which ensures quick and easy integration into existing systems.

Technical highlights and range of functions

The decoder has a total of 10 function outputs, including four logic level outputs for lower current loads and six outputs with a load capacity of up to 250 mA. The total load is up to 1.0 A, which means that even extensive light or function modules can be reliably controlled. The free assignment of functions up to F68 enables customized control for complex models.

• Protocols: DCC, RailComPlus®, Motorola®
• Number of function outputs: 10 (including 4x logic level and 6 outputs with 250 mA)
• Total load: Up to 1.0 A
• Variable function mapping: Freely configurable up to F68
• Programmable: Via Piko SmartProgrammer
• Dimensions: Approx. 15 x 10 x 4 mm

Extended function mapping and individual programming

With the extended function mapping, you can assign any function to any function output. This enables the control of complex scenarios, such as the separate switching of interior lighting, top lights or other accessory modules. The Piko SmartProgrammer is available for even more convenient adaptation of the functions.

Compact design for a wide range of applications

Thanks to its compact dimensions of just 15 x 10 x 4 mm, the decoder can be easily installed even in confined spaces. This makes it ideal for installation in smaller vehicles, driving trailers or wagons with limited space. The cable connections ensure maximum flexibility during installation.

Compatibility and areas of application

The Piko SmartDecoder XP 5.1 F is compatible with all model railroad layouts and vehicles that have a Next18 interface. This includes in particular Piko models and lighting boards. Regardless of the track gauge, this decoder can be used in a variety of ways for individual control tasks.

Conclusion: A versatile decoder for demanding model railroaders

The Piko 56518 PSD XP 5.1 F Next18 is the ideal choice for model railroaders who value flexible control options, high load capacity and compact design. With support for multiple protocols and extensive configuration options, this decoder can be optimally integrated into modern layouts. Get this powerful function decoder now and expand the possibilities of your model railroad layout!

Features:

• Manufacturer: Piko
• Type: SmartDecoder XP 5.1 F Next18
• Protocols: DCC, RailComPlus®, Motorola®
• Number of function outputs: 10 (4x logic level, 6x 250 mA)
• Total load: Up to 1.0 A
• Variable function mapping: Up to F68
• Dimensions: 15 x 10 x 4 mm
• Compatibility: All track sizes
• Interface: Next18
• Novelties: 2025

Specs:

• Gauge: All
• Type: Accessories
