PROXXON 4527088 Dekupiersäge DS 230/E

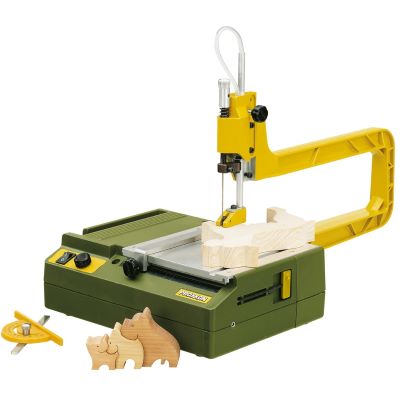

The PROXXON DS 230/E scroll saw is exactly the right tool for the fine job. Model making, toy manufacturing and precision mechanics. It cuts softwood, hardwood, plastic (including blanks) and non-ferrous metals. It has a very sturdy saw frame made of cross-ribbed die-cast aluminum (throat depth 300 mm) and a blade guide with integrated blowing device. It is also equipped with a durable, quiet and stable AC motor. All further details on this product can be found under the features.

Features:

• Suitable for model making, toy manufacturing and precision mechanics
• With electric stroke rate control
• Cuts softwood up to 40 mm
• Cuts hardwood up to 10 mm
• Cuts plastic (including circuit boards) up to approx. 4 mm
• Cuts non-ferrous metals up to 2 mm
• Very sturdy saw arm made of cross-ribbed die-cast aluminum (throat depth 300 mm)
• Blade guide with integrated blowing device
• Height-adjustable head section
• Durable, quiet and stable AC motor
• Low-noise and wear-resistant drive via toothed belt
• Longitudinal fence and angle fence with scale graduation
• Face-milled worktop (160 x 160 mm) and saw frame made of die-cast aluminum

Technical data:

• 220 - 240 V, electronic stroke rate from 150 to 2,500 rpm

Instruction manual / Safety instructions:

• Safety instructions (1.63 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
