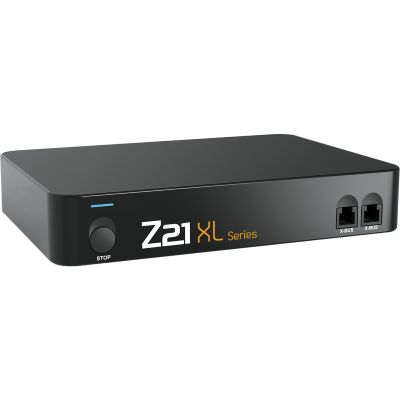

Roco 10870 Z21 XL Series

Roco 10870 Z21 XL Series - Digital control for large model railroad tracks

The Roco 10870 Z21 XL Series is the latest addition to the proven Z21 family and has been specially developed for the requirements of large model railroad layouts. Especially for large gauges such as 0, 1, 2 and G, this digital control unit offers significantly higher output power and ensures reliable control of complex model railway layouts. The Z21 XL series combines the high convenience of the Z21 system with the performance required for larger scales, taking model railroad operation to a new level.

Optimized for large track gauges

The Z21 XL Series is specially designed for model railroad layouts with large track gauges. Unlike the standard Z21 version, the XL Series delivers an increased output power of 6 amps, which is particularly beneficial when controlling larger locomotives and extensive train sets in 0, 1, 2 and G gauges. This higher power is crucial for smooth operation on layouts that require more power for longer trains or additional electrical functions.

Another advantage is the Z-CAN interface, which makes it possible to integrate a large number of Z21 XL boosters into the system. This allows even more track sections or additional electrical devices to be supplied without affecting the performance of the control center. This provides a flexible and expandable solution for model railroaders who want to control a large and complex layout.

Technical features of the Z21 XL Series

The Z21 XL Series offers a wide range of functions and technical features that make the operation of large model railroad layouts convenient and safe. Particularly noteworthy is the 6-amp track output at a voltage of 20 volts, which ensures a stable power supply even for demanding layouts. However, the track voltage itself is not adjustable and depends on the power supply unit used, which is included in the scope of delivery.

The system is controlled via WLAN, which ensures a high range and transmission reliability. The Z21 app offers an intuitive user interface with which all the system's functions can be conveniently controlled. Alternatively, the Z21 WLANMAUS can also be used to ensure precise control of the locomotives and functions.

Flexibility and convenience with the Z21 app

The Z21 app is an integral part of the Z21 system and offers user-friendly control of the entire model railway layout. Trains, points and other accessories can be controlled easily and intuitively with the app. The app also allows layouts and timetables to be saved so that various scenarios can be conveniently called up and used on the layout.

Another advantage of the Z21 app is the WLAN control, which not only offers simple operation, but also a high range and reliability in signal transmission. This is particularly advantageous for large model railway layouts, where a stable and secure connection is crucial to ensure smooth control of the layout.

Scope of delivery of the Z21 XL Series

The Z21 XL Series is supplied with everything you need to operate your model railway layout. The scope of delivery includes the Z21 XL digital central unit, a 6 A and 20 V power supply unit, as well as a WLAN router and the corresponding power supply unit. This equipment ensures that you can put your layout into operation immediately and benefit from the advantages of digital control.

Expansion options with Z21 XL boosters

For particularly large systems or sections with high power requirements, the Z-CAN interface offers the option of adding Z21 XL boosters. These boosters extend the power supply and ensure that even remote or heavily loaded sections of the system can be controlled without any problems. This makes the Z21 XL a flexible and scalable solution for model railroad layouts of any size.

Conclusion: The ideal control center for large model railway layouts

With the Roco 10870 Z21 XL Series, you get a powerful and flexible digital control center that is specially tailored to the needs of large track gauges and complex layouts. Thanks to the high output power, the WLAN control and the Z-CAN interface for boosters, this system offers all the functions required for reliable and convenient operation. The simple operation via the Z21 app and the possibility of expansion make the Z21 XL the ideal choice for model railroaders looking for a powerful and expandable control center for their 0, -1, -2 or G-gauge layout.

Features:

• More output power: 6 A at 20 V
• WLAN control for long range and transmission reliability
• Convenient Z21 app and Z21 WLANMAUS for controlling the entire system
• Z-CAN interface for the connection of Z21 XL boosters
• Rail voltage depends on the power supply unit (not adjustable)
• Z21 XL Series digital control center
• Power supply unit and cable 6 A, 20 V
• WLAN router & power supply unit

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (9.04 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
