Roco 42583 H0 Weiche rechts Wr10 Product Details

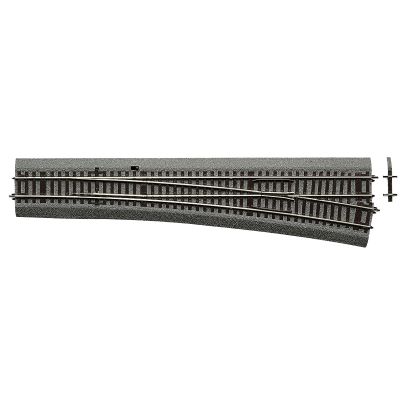

Roco 42583 H0 turnout right Wr10 with manual drive and ballast: Precise track components for your model railway layout
The Roco 42583 H0 right-hand turnout Wr10 is a high-quality right-hand turnout with manual drive and ballast that has been specially developed for H0 model railway layouts. With a length of 345 mm (corresponds to G1 + G½), a branching angle of 10° and a branching radius of 1946 mm, it enables realistic and functional track layouts on your layout.
Technical features and improvements
The turnout is characterized by completely redesigned frogs and wheel guides, which allow the turnout areas to be crossed in a prototypical manner. The groove width in the frog area complies with NEM standards, which ensures smooth operation and high compatibility with different vehicle types. In addition, the polarization of the turnout frog is already pre-installed, which increases electrical reliability.
Electrical properties and expansion options
For optional electrical operation, the turnout can be retrofitted with the matching 42620 or 42624 electric drives. This enables convenient remote control and integration into digital control systems.
Scope of delivery and accessories
A 5 mm spacer (D5) is included in the scope of delivery for diagonal installation of the turnout, which enables precise adjustment and integration into your track system.
Conclusion
The Roco 42583 H0 turnout right Wr10 with manual drive and bedding impresses with its well thought-out technical improvements and the possibility of electrical retrofitting. It is an excellent choice for model railroaders who value attention to detail, functionality and expandability.
Features:
- Length: 345 mm (corresponds to G1 + G½)
- Branching angle: 10°
- Branch radius: 1946 mm
- Crosspiece angle: 8.1°
- Revised frogs and wheel guides for prototypical running over
- Groove width in the frog area according to NEM standards
- Polarization of the turnout frog pre-installed
- Rail profile height: 2.1 mm
- Including 5 mm spacer (D5) for diagonal installation
- Can be optionally retrofitted with electric drive 42620 or 42624
Specs:
- Gauge: H0
- Rail Type: Turnout Right
- Bedding: With bedding
- Type: Track
