Roco 7320003 diesel locomotive T 466 2050, CSD, Ep. IV (incl. sound) AC current/AC

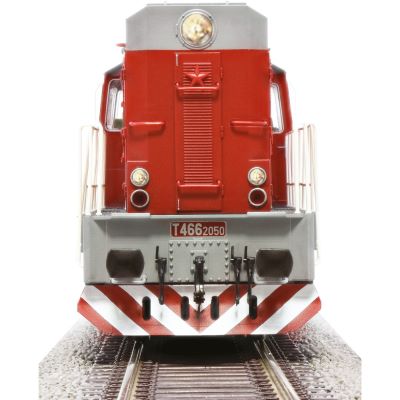

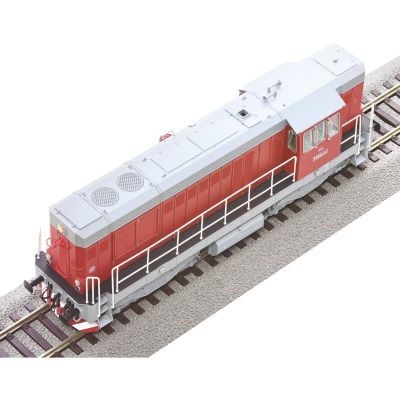

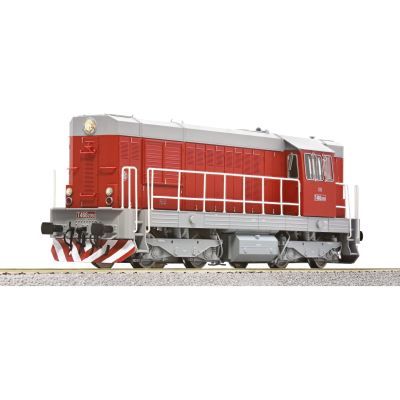

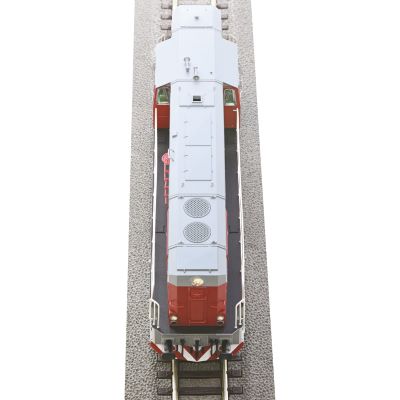

About the model: The T 466 2050 diesel locomotive is a Czechoslovakian State Railroad model and is from Era IV. The locomotive is 156 mm long (length over buffers) and is equipped with a digital interface. The model is factory-equipped with a sound decoder. It is powered by 3 axles and 2 are equipped with traction tires. All other details about the model can be found under the features.

About the prototype: In the 1970s, the former Czechoslovakian State Railroad (ČSD) had a great need for powerful diesel freight locomotives for medium-duty shunting and mainline service. As a result, the lighter T 466.2 variant was derived from the industrial locomotive type T 448. It was manufactured by ČKD in Prague from 1977 in nine series (each with minor differences) with 494 units and was put into service by ČSD until 1986.

Features:

• Alternating current (AC)
• Gauge size: H0
• Era: IV
• Clearance: 156 mm
• Minimum radius: 358 mm
• Coupling: NEM 362 shaft with KK kinematics
• Number of powered axles: 3
• Axles with traction tires: 2
• Electrical interface: Electrical interface for PluX22 traction units
• Digital decoder: PluX22
• Sound: Yes
• Headlights: 3 headlights / 2 marker lights, dependent on direction of travel
• 1st series version with smooth driver's cab side wall
• Finely detailed model with many separately applied plug-in parts
• Clear view through the driver's cab
• Filigree safety railings
• In digital mode with switchable shunting light, individually switchable head or tail light and driver's cab lighting

Specs:

• Gauge: H0
• Rail Company: CSD
• Era: IV
• Color: Red
• Electricity System: AC
• Digital: Yes
• sound: Yes
• News: 2023
• Type: Diesel loco

Instruction manual / Safety instructions:

• Manual (2.47 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
