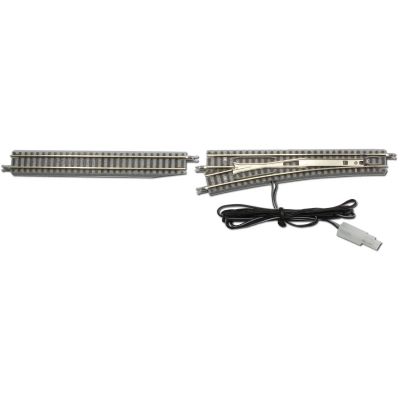

Rokuhan 97039 R039, E-Weiche links R490-13° 110mm

There are two turnout sizes in the ROKUHAN track geometry: Length 110mm R490-13° and length 55mm R127-26°. This is the variant with a length of 110mm. The turnouts can be operated manually or electrically. The drives are housed directly in the track bed. The frogs are made of metal and are current-carrying. The intelligent stop points of the Power Routing System prevent trains from colliding. (The stop switch function can be easily deactivated by inserting 2 screws on the underside). The currently strongest neodymium magnets ensure high traction and reliability in long-term operation. The parallel track spacing after installation of the counter curve is 25 mm.

Features:

• 1x straight track 110mm
• 1x left-hand R490-13° electric turnout
• Turnout may only be operated with the ROKUHAN turnout switch C002 or the speed controller
• please use the turnout module (NOCH item no. 60264) to use control panels with push-button function
• Incorrect operation of the points (points blade is not in the direction of travel) can lead to short circuits
• Can be operated manually or electrically
• Drive housed directly under the track bed
• Metal frogs and current-carrying
• intelligent stop switches of the Power Routing System prevent trains from colliding (the stop switch function can be deactivated by inserting 2 screws on the underside)
• The strongest neodymium magnets currently available ensure high traction and reliability in long-term operation
• Parallel track distance after installation of the counter curve: 25mm

Specs:

• Gauge: Z
• Rail Type: Turnout Left
• Bedding: With bedding
• Type: Track

Instruction manual / Safety instructions:

• Safety instructions (1.63 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
