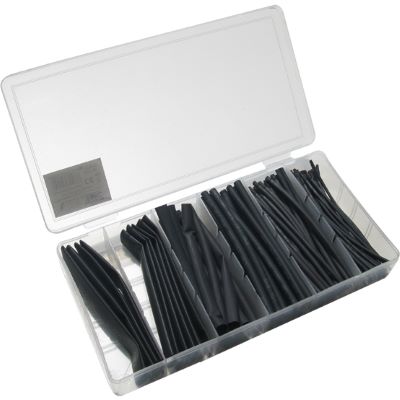

Schönwitz 30277 Schrumpfschlauch Sortiment Set 100 Teile 10cm (schwarz)

The Schönwitz 30277 heat shrink tubing set consists of 100 pieces of heat shrink tubing, each 10 cm long, and is available in black. This set offers a wide selection of heat-shrink tubing for insulating and protecting cables and wires. The tubing is available in different diameters and is perfect for various applications in model making, electronics or general cabling projects. The flexible material shrinks to the desired size when heated and ensures a precise and secure connection. Ideal for projects where a large quantity of heat-shrink tubing is required.

The heat-shrink tubing is intended for professional use due to its excellent chemical, mechanical and electrical properties. It guarantees perfect electrical insulation and offers protection against corrosion and mechanical stress.

Supplied with 1 meter of heat-shrink tubing, pre-cut into 10 pieces of 10 cm each.

Features:

• Material: radiation cross-linked polyolefin
• Color: black
• Diameter before shrinking: 1.2 mm
• Diameter after shrinking: 0.6 mm
• Shrink ratio: 2:1
• Wall thickness after shrinkage: 0.40 mm
• Shrink temperature: '110 °C
• Longitudinal shrinkage: max. 10 %
• Application temperature: -55 °C to +135 °C
• Tensile strength: 15.0 MPa min (ISO 37)
• Flammability: self-extinguishing
• Dielectric strength: =24 kV / mm
• Tested according to: UL224, CSA 400-U-9
• High resistance to: acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
