Schönwitz 50148 LIY-Z Zwillingslitze 2x 0,14mm² (rot/schwarz) 10 Meter

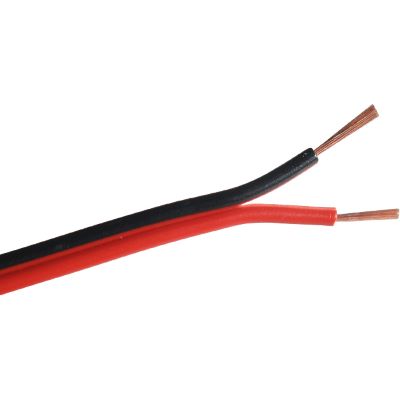

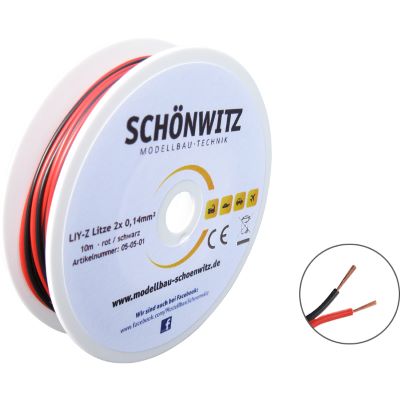

Highly flexible LIYZ double stranded wire, marked black on one side in the color red, on a practical 10 m roll.

Features:

• Type: LIYZ twin cable 2 × 0.14qmm
• Conductor construction: 18 × 0.10 mm bare copper
• Core insulation: PVC single-layer insulation
• Two-colored: red / black
• Core dimensions: nom. 1.30 mm x 2.60 mm
• Operating voltage: maximum 500V
• Test voltage: 1200V at 50Hz / 1 minute
• Insulation resistance: minimum 200 MOhm x km at 20 °C
• Conductor resistance: maximum 129 Ohm / km at 20 °C
• Temperature range: at rest: -30 to + 70 °C - in motion: -5 to + 70 °C

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
