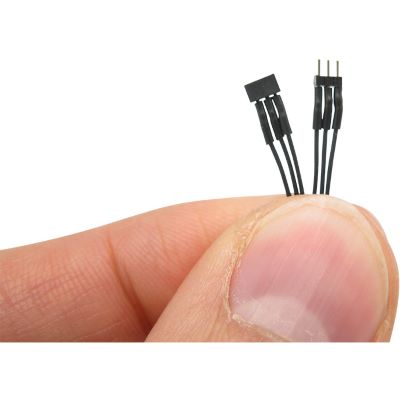

Schönwitz 51229 Micro Steckverbinder 3-polig Stecker Buchse with 0,04mm² Litze (4 Stück)

These connectors are characterized by their extremely compact design. The contacts are arranged in a 1 mm pitch. The open contact points on the plug have been insulated to create a secure and clean plug connection. The connecting wires on the plug and socket are each 20 cm long, resulting in a total length of 40 cm with a cable cross-section of just 0.04 mm².

Ideal for discreet power or signal transmission between two passenger cars.

Features:

• Pitch: 1.0 mm
• Number of poles: 3
• Type: plug + socket with stranded wire
• Total length: 40 cm (20 cm stranded wire each on plug and socket side)
• Strand cross-section: 0.04 mm²
• Strand diameter: 0.5 mm
• Current: max. 0.75 A
• Insulation resistance: min. 1000 m Ohm
• Contact material: bronze
• Insulation material: Polyester and radiation cross-linked polyolefin
• Contact resistance: max. 30 m Ohm
• Scope of delivery: 4 plugs and 4 sockets with micro stranded wire
