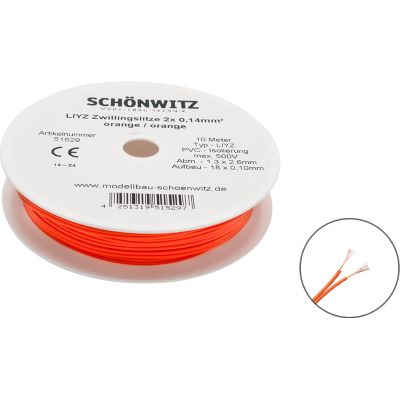

Schönwitz 51529 Doppellitze Zwillingslitze 2x 0,14mm² orange 10 m

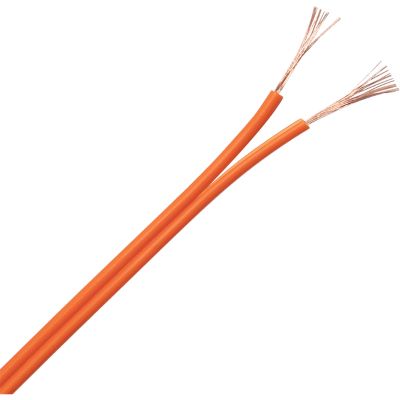

Highly flexible LIYZ double stranded wire, on a practical 10m roll. High-quality design made in Germany.

Features:

• Type - twin cable LIYZ 2 x 0.14qmm
• Length: 10 m
• Conductor construction - 18 x 0.10mm bare copper
• Core insulation - PVC single-layer insulated
• Core dimension - nom. 1.30mm x 2.60mm
• Operating voltage - maximum 500V
• Core dimension - nom. 1.30mm x 2.60mm
• Test voltage - 1200V at 50Hz / 1 minute
• Insulation resistance - minimum 200 MOhm x km at 20°C
• Conductor resistance - maximum 129 Ohm / km at 20°C
• Temperature range - at rest: -30 to + 70°C - in motion: -5 to + 70°C
