tams elektronik 53-00180-02 Zugschlussbeleuchtung ZSB-2

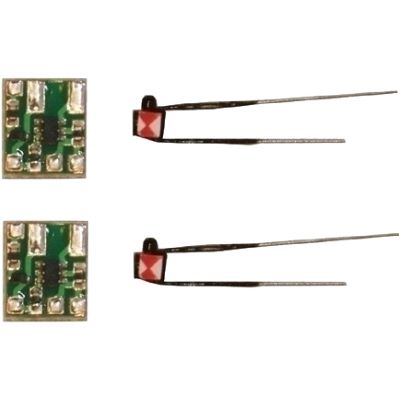

Combination pack train rear lighting ZSB-2, consisting of 2 red LEDs in the shape of the "classic" train rear lanterns and 2 LED Control Basic circuit boards.

• With red and white printing on the sides and "chimney", as they were used by DR and DB until the 1980s
• Suitable for TT and H0 vehicles

• As ballast boards with LED constant current source and connection points for a buffer capacitor
• As mounting aids
• Board dimensions: only 6.5 x 7.5 mm
• Limitation of the current to a constant 20 mA
• No additional series resistor required
• Constant brightness from reaching the minimum voltage = approx. 3 V

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
