tams elektronik 53-01470-01 FD-LED-Set 75/0

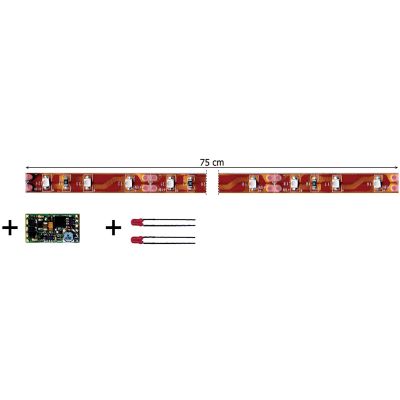

Digital lighting set for passenger carriages, platform roofs, factory buildings and much more. FD-LED function decoder + LED strip with warm white LEDs in PLCC2 housing + 2 LEDs, 3 mm, wired, light color: red

Features:

• FD-LED multiprotocol function decoder (MM and DCC)
• LED strip with warm white LEDs in PLCC2 housing
• 2 red LEDs for train rear lighting
• Includes CD with instructions and further information

• 21.5 x 11.5 mm small decoder for DCC and Motorola format
• Connection of up to 1.5 m LED strips (with a power consumption of 4.8 watts/m) - sufficient for 6 H0 carriages or 1.50 m platform roofs
• Additional output for LEDs for the end lighting
• Effects of the outputs: direction-dependent switching and dimming
• Constant brightness of the LED strips and LEDs (due to fixed output voltage of 12 V)
• Flicker protection by connecting an external backup capacitor (100 to 470 μF/25 V)

• 3 warm white LEDs in PLCC2 housing per 5 cm
• Dimensions: Width approx. 8 mm, height approx. 2 mm, length 50 or 75 mm
• Divisible at intervals of 5 cm
• Back with self-adhesive strip
• Power consumption: 4.8 W/m
• 75 cm | 45 LEDs

• 2 red LEDs (3 mm, wired) for train rear lighting
