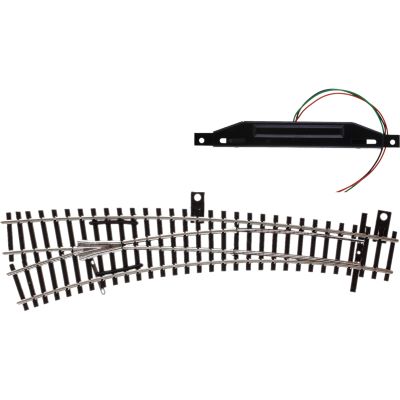

SET Tillig 83364 Innenbogenweiche links 15°/30° + Weichenantrieb (ele.) links

1x Tillig 83364 Innenbogenweiche links 15°/30° neu

Model: MBS164854

on stock

Features:

• Successor of item 83362 inside curve turnout left 15°/30°.
• Branch: 15°
• radius: 631 mm
• Branch: 30°
• radius: 310 mm (R 11)
• revised optics and technology, based on the three-way turnout
• frog made of metal and can be supplied with current
• for short locomotives as well as for slow running this provides an optimal current collection
• new, improved switch blades
• power supply of the frog by drives
• suitable drives from Tillig: 83532 turnout drive model track (ele.) left, 83534 manual turnout drive left or 86112 underfloor turnout drive (motorized turnout drive)

1x Tillig 83532 Weichenantrieb Modellgleis (ele.) links

Model: MBS104886

on stock

Features:

• Design: end-switched double coil drive
• Operating voltage: 14-16 V alternating current (AC)
• Current requirement: 1 A for a short time
• Track size: TT
• Control via pulse operation
• Recommended transformer: Tillig 08122, 16.5 V, 45 VA
• Cable cross-section: at least 0.14 mm²
• Pause time between switching operations: 1-2 seconds

Instruction manual / Safety instructions:

• Manual 83532 Weichenantrieb Modellgleis (ele.) links (346.95 KB)
• Manual 83364 Innenbogenweiche links 15°/30° (707.49 KB)
