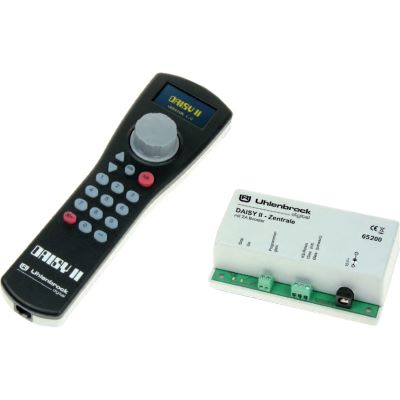

Uhlenbrock 64300 DAISY II digital set

The DAISY II digital set is a digital entry-level system for the ambitious model railroader. It consists of a DAISY II hand controller and a DCC command station, which are connected to each other via a LocoNet cable. It masters all functions that are desirable for comfortable model railroad operation.

The digital command station is the heart of the DAISY II digital set. In the command station all commands are coordinated and processed according to their meaning. It generates the DCC track signal and provides the LocoNet connection to the hand controller.

Features:

• 20 locomotives can be controlled simultaneously
• 9999 locomotive addresses
• Data format DCC with 14-, 28-, and 128 speed steps
• Individually selectable for each locomotive address
• Up to 24 special locomotive functions per locomotive switchable
• Up to 2000 solenoids switchable in DCC data format
• Route memory for 16 routes
• These routes can switch any solenoid addresses between 1 and 2048 with a maximum of 10 steps each
• Max. Output current: 2 A
• Programming track output for DCC decoder
• LNCV programming for LocoNet components
• Output for a 61080 reversing loop relay for automatic control of a reversing loop
• LocoNet-T connector for all common LocoNet devices
• LocoNet-B connection for external LN boosters such as Power 4 or Power 8
• With RailCom® CutOut in DCC signal e.g. for the MARCo automation system
• Dispatch mode for the FRED hand controller
• Updateable via USB-LocoNet interface 63120

Specs:

• Gauge: All
• Type: Remote
