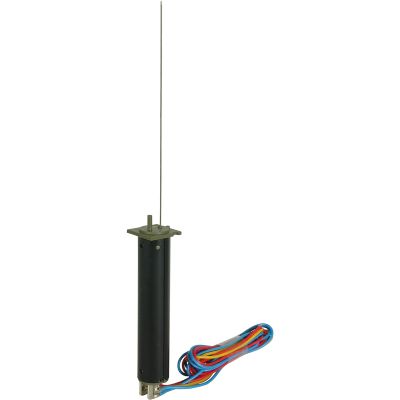

Viessmann 4551 Stellantrieb für Formsignale

This product is an actuator for signals. With slow actuating movement and a freely usable closing contact with a load capacity of 2 A. The actuator is controlled by voltage pulses of 16 V. However, thanks to the built-in limit switch, actuation is also permitted with continuous current. The current consumption in the switching moment is 0.7 A.

Features:

• Viessmann - Actuator for signals
• Category: Shaped signals
• Actuator dimensions: Ø 1.3 cm, L 6.79 cm
• Cover plate: L 1.5 x W 1.5 cm
• Actuating travel: 0.5 cm
• Actuating wire length: 9 cm
• Actuating force: 0.1 N (approx. 10 g)
• Actuating speed: approx. 1 cm/s

Specs:

• Gauge: H0
• Type: Accessories

Instruction manual / Safety instructions:

• Manual (324.47 KB)
