Viessmann 4568 H0 Mot.Weichenantr. für Märklin/Trix C-Gleis

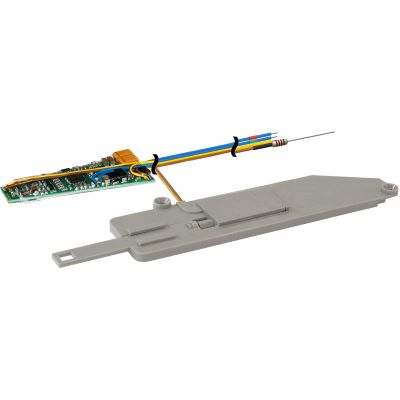

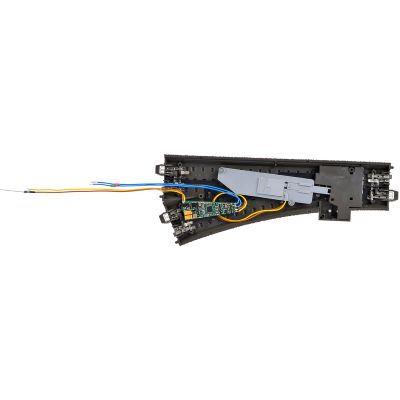

The motorized turnout drive is a powerful, low-noise drive with an associated digital decoder. The electronics can be conveniently accommodated in the track bed. The turnout mechanism is characterized by slow movement of the switch blades in a prototypical manner. The speed and the motion sequence are electronically controlled and ensure a sensitive drive. If due to the characteristics of your turnout the direction of movement does not match the switching direction on your input device you can invert the actuating direction of the drive in digital mode. The associated decoder understands the formats Märklin-Motorola and DCC and can send the requested setpoint or actual position to suitable digital command stations, e.g. Viessmann Commander. However, it can also be operated in analog mode.Additional switching outputs for relays or LEDs as well as for conventional position feedback and frog polarization complete the range of functions. complete the range of functions. Their function is configurable.

Features:

• Speed and motion sequence are electronically controlled and guarantee a sensitive drive
• associated decoder understands the formats Märklin-Motorola and DCC

Specs:

• Gauge: H0
• Type: Accessories

Instruction manual / Safety instructions:

• Manual (1.24 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
