Viessmann 5077 Waggon-Innenbeleuchtung

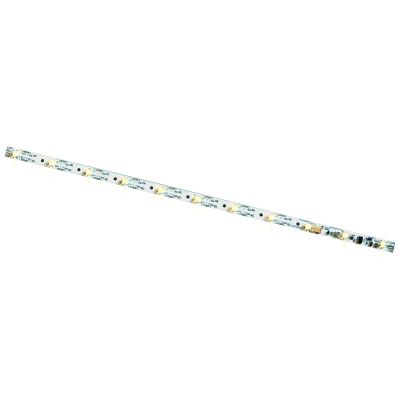

5077 Carriage interior lighting, 11 LEDs warm white, with function decoder


Multi-partition interior lighting with a built-in multi-protocol decoder (Motorola & DCC) and maintenance-free, energy-saving LEDs and bright light. Brightness digitally adjustable via CVs and potentiometer. Suitable for wagons from all manufacturers that are intended for lighting. The boards are mounted under the wagon roof. The boards can be shortened to fit any length of wagon. Integrated flicker protection for constant light, additional back-up capacitors/power pack can be connected, various lighting effects can be set, such as simulation of fluorescent tubes switching on or individual flickering tubes. Power is supplied either by the sliders / contact sets provided on the wagon or by our current-carrying couplers Art. 5048 / 5071. Suitable for DC, AC and digital voltage. Connection option for end-of-train lighting, e.g. item no. xyzu. Current consumption approx. 20 mA, approx. 8 mm x 254 mm.

Specs:

• Gauge: H0
• Type: Construction kit

Instruction manual / Safety instructions:

• Manual (1.37 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
