Viessmann 8450 H0 CarMotion Nachrüst-Set sound für MAGIRUS Eckhauber, rot

Viessmann 8450 H0 CarMotion retrofit set sound for MAGIRUS corner bonnet: Realistic sound effects for your models

With the Viessmann 8450 H0 CarMotion Retrofit Set Sound, you can equip your MAGIRUS corner hood with authentic sound effects that enrich the driving experience on your H0 model railway layout. The vehicle-specific sound module is mechanically, color and acoustically matched to the vehicle type and offers a variety of realistic engine and driving noises that make your CarMotion models even livelier. Whether starting the engine, shifting gears or squealing brakes - the sound module provides an interactive and detailed driving experience.

Individually customizable controls and sound effects

The sound module plays various sounds such as engine start and stop, braking noises, gear changes and a reversing warning signal. In addition, the horn and - if available - a siren can be activated by remote control, DCC command or infrared or magnetic sequence. The volume of the engine sound can be individually adjusted to adapt the module perfectly to your model railway environment.

Simple installation and retrofitting

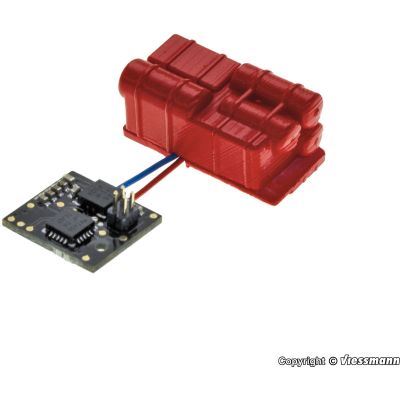

Retrofitting the module is uncomplicated. It is connected to the vehicle circuit board via a four-pin plug and securely screwed in place. The previous left-hand add-on parts such as the exhaust and air tanks are replaced by new, integrated add-on parts with loudspeakers. Vehicles without a four-pin extension socket cannot be equipped with the sound module. The sophisticated design enables simple integration without impairing the functionality of the vehicle.

Technical data and compatible vehicles

The sound module is powerful and efficient. With an output of 250 mW, an efficiency of 81 dBA and a frequency range of 800 Hz to 10 kHz, it offers excellent sound quality. With its compact dimensions of L 18 x W 8.8 x H 11.4 mm, the module can be easily integrated into the vehicle. It is compatible with the Viessmann 8002, 8012, 8018 and 8135 vehicle models, allowing it to be seamlessly integrated into existing CarMotion systems.

Typical areas of application

The sound module is ideal for use in construction site, transportation and road scenarios. It adds an acoustic dimension to your CarMotion models, making the driving experience even more realistic and enabling interactive scenarios. Thanks to its high-quality workmanship and versatility, the module is the perfect choice for sophisticated model railroad layouts.

Care tips and maintenance

To maintain the sound quality and functionality of the module in the long term, it should be protected from moisture and excessive dust. The plug connections should be checked regularly and the loudspeaker attachments cleaned if necessary. This will ensure that the sound module functions perfectly and has a long service life.

Conclusion: Realistic sounds for a lively driving experience

The Viessmann 8450 H0 CarMotion retrofit sound set is the ideal addition for your MAGIRUS corner hood and compatible CarMotion models. With a variety of realistic sounds, easy installation and individual controllability, this module adds a new dimension of interactivity and realism to your model railway layout. Perfect for anyone who wants to enrich their vehicles with authentic sounds.

Features:

• Realistic engine and driving sounds
• Switchable sounds such as horn, siren and reversing warning signal
• Simple control via remote control, DCC command or infrared/magnetic sequence
• Individually adjustable volume
• Simple retrofitting with four-pin plug
• Power: 250 mW, efficiency: 81 dBA, frequency range: 800 Hz - 10 kHz
• Compact dimensions: L 18 x W 8.8 x H 11.4 mm
• Compatible with Viessmann 8002, 8012, 8018 and 8135

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
