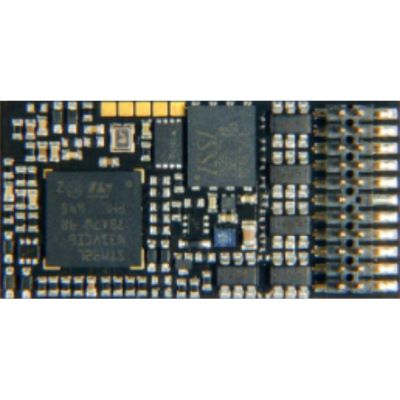

Zimo MS450P16 Sound-decoder PluX16 with 16 Pins

With this sound decoder, Zimo offers an excellent opportunity to digitize analogue H0 locomotives with Plux16 interface (NEM658) with a sound decoder or to equip already digitized locomotives with a new decoder. The decoder can work with the DCC, mfx, MM and RailCom protocols, which opens up a wide range of applications. A Plux16 plug-in device ensures simple installation of the decoder. The 3W audio output enables the operation of loudspeakers with 4-8 ohms.

Features:

• Manufacturer: Zimo
• Category: Digital accessories
• Track: H0
• Interface: Plux16 (NEM658)
• Motor/total current: 1.2 A (2.5 A peak)
• Function outputs: 10
• Protocols: DCC, mfx, MM, RailCom
• Automatic mfx registration: yes
• Susi interface: yes
• Loudspeaker output 3W
• Loudspeaker: 4 to 8 Ohm usable
• Dimensions: 30mm x 15mm x 4mm

Specs:

• Gauge: H0

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
