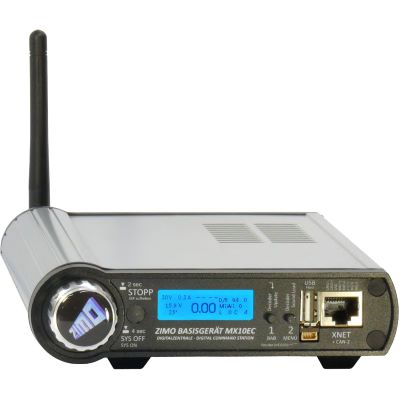

Zimo MX10EC Economy Basisgerät, 300 Watt

What is striking at first glance are the very small dimensions (18 or 15 cm wide, 3 cm high, depending on the type) and the absence of a heat sink and fan. Thanks to state-of-the-art power electronics - five high-frequency switching regulators for rail outputs and auxiliary voltages - the device does not get hot despite 20 A on the rail and 5 A on the bus.

The ZIMO system also takes into account applications where high currents could cause damage. For example, short circuits on the rail when connected to the MX10 generate fewer sparks than with some weak digital systems thanks to a special circuit.

However, the ZIMO system offers even more than "high performance": the processor, memory and software equipment, as well as high-quality measurement technology, for example for the precise RailCom detectors, many connections and the radio system integrated as standard enable the variety of functions typical of ZIMO.

Features:

• Zimo - MX10EC Economy basic unit, 300 watts
• 1 rail output with adjustable traction voltage 10 - 24 V
• Traction current 12 A, adjustable overcurrent limit and switch-off time

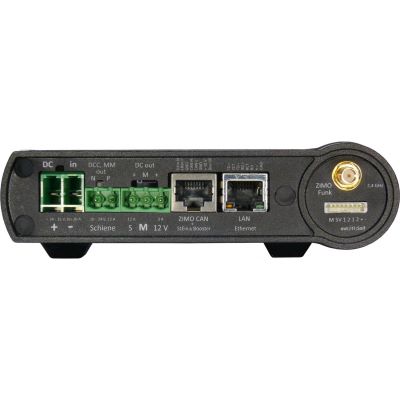

• Sockets for ZIMO CAN bus, XNet bus, LAN, USB stick, booster control, 3 digital I/Os
• 2.4 GHz MiWi radio module, 5dBi antenna

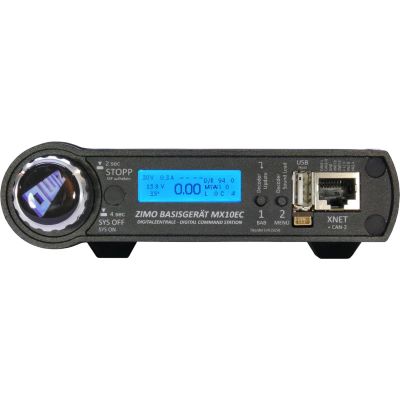

• Operating elements (rotary knob, 2 buttons) and two- to four-line display

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (7.7 MB)
