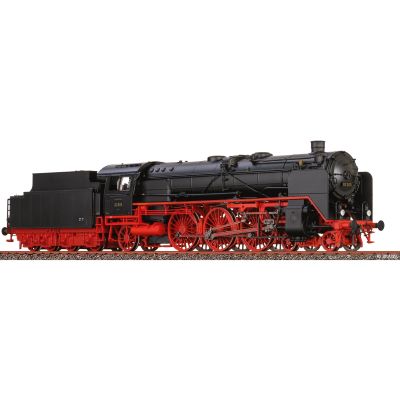

Brawa 70095 H0 steam locomotive 02 005, DRG, Ep. II, AC-Sound-Extra

Brawa 70095 H0 Steam Locomotive 02 005, DRG, Ep. II, AC-Sound-Extra: A highlight for model railroad fans

The Brawa 70095 H0 steam locomotive 02 005 is a detailed model of the German State Railroad Company (DRG) from Era II that was specially developed for operation on 3-wire alternating current systems (AC). With its built-in sound decoder and the additional functions of the "Digital EXTRA" version, it offers an authentic driving experience and a detailed look. The 02 005 locomotive, which once belonged to the Hamm depot, is precisely reproduced in this model and brings the great era of German express steam locomotives to life.

The prototype: The 02 005 express locomotive

The 02 series was a further development of the famous BR 01, in which a four-cylinder compound system was used instead of a two-cylinder drive. This design was intended to increase efficiency and provide even greater tractive power. The 02 005 was one of the few locomotives of this series to be built. It was used on important main lines to ensure fast connections and to test the performance limits of modern steam technology. With a top speed of 120 km/h and its robust design, it was an impressive representative of German steam locomotive technology.

Era II: The rise of express steam locomotives

Era II (1920-1945) was a time of technical progress in the German railroad system. The Deutsche Reichsbahn Gesellschaft invested heavily in the expansion of its rail network and the development of powerful locomotives. The 02 series was created during this time as an attempt to improve the efficiency of express train services. Even though the series was not built in large numbers, it remains an important example of the engineering skills and innovative spirit of this era.

Technical highlights of the Brawa 70095

The model impresses with its meticulously realized details and advanced technology. The boiler, driver's cab and tender are made of finely detailed plastic components and faithfully reproduce the striking design of the prototype. The perforated bar frame and the filigree spoked wheels made of die-cast zinc ensure stability and a realistic appearance. The true-to-scale single axle bearing in metal ensures excellent running characteristics and smooth running.

The integrated sound decoder from Döhler+Haass provides an authentic acoustic experience. Steam exhausts, whistles and other noises are reproduced realistically and make every ride a realistic experience. The "flickering fire" and "engine lighting" functions of the "Digital EXTRA" version provide additional visual effects.

The drive takes place in the tender, which enables even power transmission and increases tractive power. The built-in flywheel mass contributes to smooth starting and even acceleration, even on tight radii from 360 mm, whereby a minimum radius of 420 mm is recommended for optimum driving characteristics.

Lighting and digital control

The Brawa 70095 is equipped with LED lighting, which enables a two-light headlight signal in the direction of travel. The interior lighting and the engine lighting add impressive lighting effects to the model, which look realistic both when stationary and when running. The PluX22 interface facilitates the installation of additional functions and offers flexible options for digital control.

Colorful design and period-appropriate details

The model is finished in the characteristic black and red color scheme of Era II. The carefully applied road numbers and lettering as well as the finely reproduced rivets and lines contribute to the authentic look. Individually attached steps and steps as well as filigree metal driving and coupling rods complete the picture and give the model its impressive level of detail.

Care and maintenance

The locomotive should be serviced regularly to ensure long-term reliable operation. Cleaning the wheels and pantographs improves the power consumption, and moving parts such as driving rods and axles should be lubricated occasionally. The smoke generator prepared for Seuthe No. 20 can easily be installed and maintained to achieve realistic steam effects.

Conclusion: A technical and visual masterpiece

The Brawa 70095 H0 steam locomotive 02 005 is an excellent choice for collectors and model railroaders who value authentic looks and state-of-the-art technology. With the built-in sound decoder, LED lighting and the option of adding digital functions, this model enriches any H0 model railway layout. Experience the impressive era of express steam locomotives on your layout.

Features:

• Size: H0
• Type: Steam locomotive
• Railroad company: Deutsche Reichsbahn Gesellschaft (DRG)
• Era: II
• Power system: 3-wire alternating current (AC)
• Digital: Yes
• Sound: Yes, sound decoder from Döhler+Haass
• Interface: PluX22
• Length over buffers (LüP): 259.1 mm
• Minimum radius: 360 mm (recommended: 420 mm)
• Light source: LED
• Interior lighting: built-in
• Smoke generator: prepared for Seuthe No. 20
• Flickering fire and engine lighting (Digital EXTRA version)
• Close coupler between locomotive and tender
• Opened bar frame and spoked wheels made of die-cast zinc
• Filigree metal driving and coupling rods

Specs:

• Gauge: H0
• Rail Company: DRG
• Era: II
• Color: Black
• Electricity System: AC
• Digital: Yes
• sound: Yes
• News: 2025
• Type: Steam loco

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.

Achtung! Maßstabs- und originalgetreue Kleinmodelle sowie Elektrozubehör für erwachsene Sammler. Nicht geeignet für Kinder unter 14 Jahren

Zum Betrieb des vorliegenden Produkts darf als Spannungsquelle nur ein nach VDE 0570-2-7/DIN EN 61558-2-7 gefertigter Spielzeug-Transformator verwendet werden.
