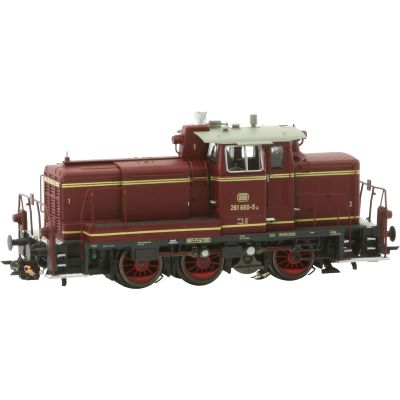

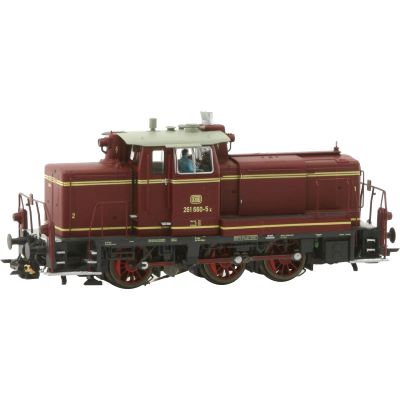

ESU 31417 diesel locomotive 261 660, DB, Ep. IV (incl. sound) DC+AC

ESU 31417 H0 Diesel locomotive 261 660, German Federal Railroad, Era IV - With sound for DC/AC operation

The ESU 31417 Era IV diesel locomotive 261 660 is a faithfully reproduced model in H0 scale. This Deutsche Bundesbahn (DB) diesel shunting locomotive is characterized by its classic red paint scheme and modern equipment. Developed for flexible use on both direct current and alternating current systems, this locomotive offers demanding model railroad fans many special features in both the technical and visual areas and impresses with prototypical sound and smoke effects.

The prototype of the 261 660 - shunting power in DB service

The 261 series, originally developed as the V60 series, was created as part of the DB programme in the 1950s to modernize shunting operations. It was equipped with coupling rods and a blind shaft to ensure both maneuverability and stability in shunting operations. With a top speed of 60 km/h, the V60 was ideal for branch lines and heavy shunting tasks. The series was also divided internally into heavy and light versions - the heavier version, the 261, is characterized by a reinforced frame and a higher weight of 54 tonnes.

A number of modifications were made over the years, including the replacement of the coal-fired holding furnaces and the installation of induction magnets in the 1960s. In the 1980s, automatic clutches were integrated to further increase efficiency. The series designation was changed to 360 and 361 in 1987, and from 1992 the 261 received a modern Caterpillar engine, making it the 362 and 363 series.

Technical highlights of the ESU 31417 model

The model of the diesel locomotive 261 660 in H0 presents itself with a high-quality metal body and frame, which ensure stability and authentic weight. The robust yet finely detailed design includes openwork fan grilles, engraved light guides and delicate metal and plastic handlebars. Thanks to its bell-shaped armature motor with flywheel mass, the locomotive is optimized for quiet and powerful running characteristics, making it ideal for shunting operations.

State-of-the-art digital technology and sound for a realistic experience

Equipped with a LokSound decoder, the locomotive supports various protocols such as DCC, Motorola®, M4 and Selectrix and can be easily integrated into digital systems thanks to RailComPlus® or mfx®. The integrated sound chip reproduces the original operating sounds of the class and, together with the synchronous smoke generator and the double loudspeaker, offers an intensive acoustic and visual experience.

Detailed lighting and additional functions

The ESU 31417 diesel locomotive has extensive lighting equipment, including cab and driver's desk lighting, prototypical tip lighting and running gear lighting. A total of 31 special functions are available to the user, which can be flexibly controlled digitally and perfectly equip the model for shunting and track use. The PowerPack storage capacitor ensures an uninterrupted power supply.

Conclusion: A must for model train fans

The ESU 31417 diesel locomotive 261 660 is ideal for model railway fans who value attention to detail, functionality and modern digital technology. With its authentic appearance, versatile lighting and sound functions as well as its powerful drive system, it is an enrichment for every H0 layout.

Features:

• Track size: H0
• Era: IV
• Railroad company: German Federal Railroad (DB)
• Length over buffers (LüP): 121 mm
• Minimum radius: 360 mm
• Metal body and frame for maximum stability
• Perforated ventilation grilles in the roof area
• Sturdy metal and plastic grab irons
• Multi-colored driver's cab with driver figure
• Bell-type armature motor with flywheel mass
• Drive via cardan/worm gears
• LokSound decoder with RailComPlus®, Motorola®, M4 and Selectrix operation
• Independent registration with digital control centers
• 31 special functions for maximum flexibility
• PowerPack storage capacitor for reliable power supply
• Synchronous smoke generator
• Digital remote-controlled coupler
• Direction-dependent headlights, cab and driver's desk lighting
• Brake sparks for sharp braking maneuvers

Specs:

• Gauge: H0
• Rail Company: DB
• Era: IV
• Color: Red
• Electricity System: 2L-DC and 3L-AC
• Digital: Yes
• sound: Yes
• News: 2019
• Type: Diesel loco
