ESU 31530 H0 electric locomotive AE6/6, 11402 Uri, SBB, Ep.IV, DC+AC-Sound

ESU 31530 H0 Electric locomotive Ae 6/6 11402 Uri, SBB, Era IV - Swiss precision and power on your model railway layout

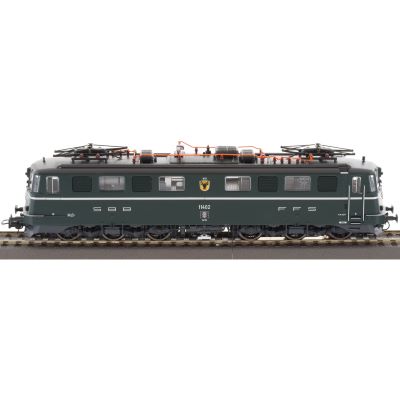

The ESU 31530 Ae 6/6 11402 Uri electric loc omotive is a masterful reproduction of the classic Swiss high-performance locomotive of Era IV. This powerful H0 scale locomotive has been designed true to detail and brings the unmistakable aesthetics and technology of the famous Ae 6/6 to your model railroad layout. With digitized original sounds, pantographs that can be raised and lowered and extensive light and sound functions, this model provides a particularly realistic driving experience. With a length over buffers (LLP) of 211.5 mm and universal usability for DC and AC systems, the locomotive is a valuable highlight for any H0 layout.

Historical prototype: The Ae 6/6 - pride of the Swiss Alpine lines

After the Second World War, the famous "crocodile" still dominated the Gotthard line in Switzerland. However, in order to cope with the increasing train weights and the requirements for higher speeds, the Swiss Federal Railways (SBB) developed the Ae 6/6 in collaboration with SLM and BBC, which was regarded as the new technical benchmark for the Swiss Alpine railroads. The pre-series models 11401 and 11402 were put into service in 1952 and reached a top speed of 125 km/h with 4300 kW of power. With their characteristic chrome livery and the Swiss cross on the front ends, the Ae 6/6s became SBB icons and mastered the demanding Alpine routes for decades. From the late 1950s onwards, the chrome decoration was removed to prevent rust, which visually distinguished the standard locomotives.

ESU - Excellent technology and attention to detail

The ESU 31530 impresses with its high-quality workmanship and exact reproduction of historical details. With a robust metal body and frame as well as finely crafted bogie panels and brake systems, the model is a must for every collector and model railroader who values precision and attention to detail. The locomotive has the classic, multi-colored design of the SBB and shows the characteristic features of the Ae 6/6 that have made this class a legend.

Technical highlights of the ESU 31530 - digital technology and authentic sound

Equipped with a LokSound 5 decoder and two high-quality loudspeakers, the ESU 31530 offers an incomparable sound image. The digitized original sounds of the Ae 6/6 include not only the characteristic driving noise, but also sensor-controlled curve and braking noises that enhance the realistic driving experience. The pantographs can be raised and lowered digitally, which further enhances the play value and realism of this locomotive.

A PowerPack storage capacitor ensures an uninterrupted power supply and guarantees stable operation even on difficult sections of track. The bell-shaped armature motor with flywheel mass and the cardan drive system ensure smooth running on four axles, supported by four traction tires that provide excellent tractive power and stability.

Flexible use on DC and AC systems

The ESU 31530 is suitable for use on direct current (DC) and alternating current (AC) systems and has universal electronics with a plug-in slider and slide switch, which enables simple switching between two-wire and center conductor operation. The minimum radius of 360 mm allows the locomotive to be used safely on a wide variety of system layouts and makes the model versatile.

Authentic color scheme and high-quality design

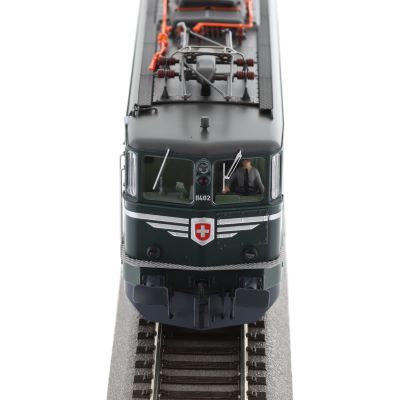

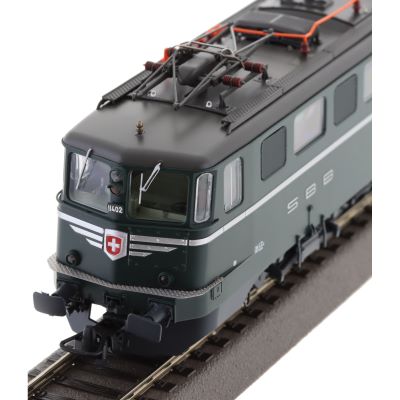

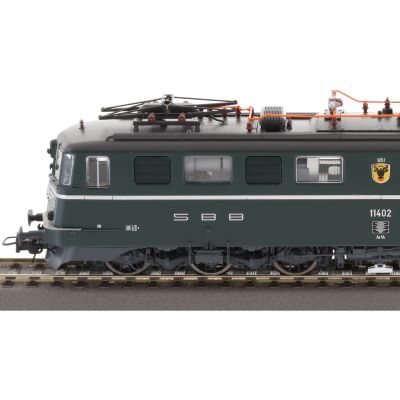

The green paintwork with the characteristic chrome strips gives the locomotive its unmistakable look and makes it look like the historical original. Separately applied grab rails, steps and etched details on the ends make the locomotive a real eye-catcher. The high-quality finish of the bogie covers and the clear view in the engine room underline the attention to detail and the high quality of the model.

First-class workmanship and long-lasting quality

The model is made of high-quality materials and is designed for regular use on the model railway layout. Spring-loaded buffers and a splined coupling in the standard shaft ensure high stability and compatibility. This locomotive is ideal for model railroaders and collectors who value long-lasting quality and technical sophistication.

Lighting and additional effects for an authentic driving experience

The ESU 31530 has numerous lighting options that bring the model to life. In addition to the direction of travel-dependent light change in white/red, the Swiss headlights can also be switched. Driver's cab, driver's desk and engine room lighting enhance the realistic appearance. The brake spark effect during sharp braking and the squealing in tight curves provide additional visual and acoustic highlights.

Conclusion: The ESU 31530 Ae 6/6 11402 Uri - A perfect choice for demanding model railroaders

The ESU 31530 Ae 6/6 11402 electric locomotive impresses with its excellent attention to detail and comprehensive technical features. The true-to-original sounds, the flexible usability and the robust workmanship make this model a must for all model railroaders looking for an authentic and durable locomotive for their collection. This locomotive brings the history and power of the Swiss railroads in Era IV directly to your layout and sets new standards in the H0 model world.

Features:

• Gauge: H0
• Era: IV
• Railroad company: Swiss Federal Railways (SBB)
• Clearance: 211.5 mm
• Minimum radius: 360 mm
• Metal body and frame
• Bell-type armature motor with flywheel mass
• Drive via cardan/worm gears on four axles, four traction tires
• Pantographs can be raised and lowered digitally
• LokSound 5 decoder for DCC, Motorola®, M4 and Selectrix operation
• RailComPlus® and mfx® compatible
• PowerPack storage capacitor for uninterruptible power supply
• Two high-quality loudspeakers with large sound capsules
• Digitized original sounds of the Ae 6/6
• Squeaking noise when cornering slowly
• Direction of travel-dependent light change, train-side headlights can be switched off
• Swiss headlights can be switched
• Driver's cab, driver's desk and engine room lighting
• Brake sparks when braking sharply
• Separately attached grab rails and steps
• Spring-loaded buffers
• Buffer beam accessories and second coupler included

Specs:

• Gauge: H0
• Rail Company: SBB
• Era: IV
• Color: Multi-Colored
• Electricity System: 2L-DC and 3L-AC
• Digital: Yes
• sound: Yes
• News: 2024
• Type: Electric loco
