NEW Märklin 39475 H0 E-Lok BR 101 "Raw Metal Edition", AC-MFX-Sound

Märklin 39475 H0 BR 101 Electric Locomotive "Raw Metal Edition," AC-MFX Sound

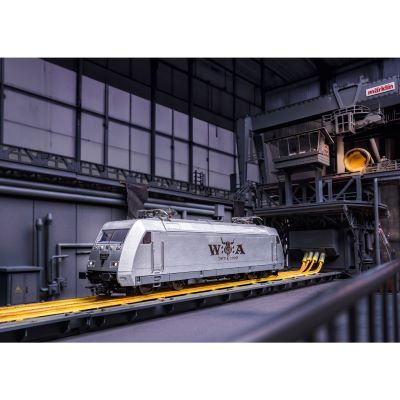

An exceptional collector’s model with a festival vibe: The Märklin 39475 H0 Class 101 Electric Locomotive “Raw Metal Edition” combines the modern Class 101 express train locomotive with a metallic look inspired by raw materials and the embossed logo of the Wacken Open Air (W:O:A®). The transparent protective coating allows the unique material texture to remain visible, making this locomotive a striking eye-catcher in any H0 fleet.

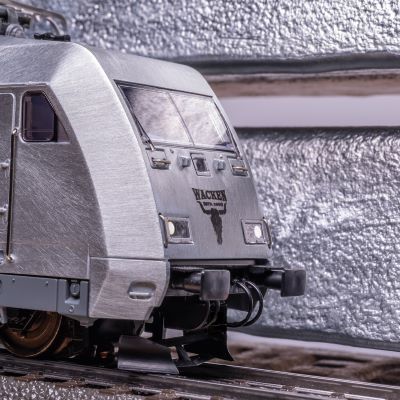

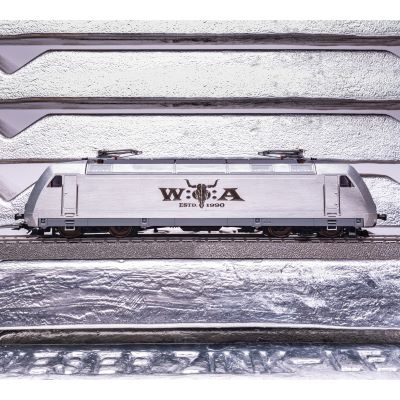

BR 101 in Raw Metal Look with W:O:A® Logo

The prototype features a Class 101 express locomotive with a unique metallic finish. Instead of a classic paint job, the focus here is on the look of the raw materials, finished exclusively with a clear protective coat. Combined with the raised-print Wacken Open Air logo, this creates a distinctive special edition for collectors, music fans, and model railroaders with an appreciation for extraordinary locomotive designs.

The Class 101, as a modern express train locomotive, is highly versatile on the model railroad. In this Raw Metal Edition, it looks particularly exclusive and is suitable both for layout operation and as a highlight in a display case.

AC-MFX Sound with mfx+ Decoder

The model is equipped with an mfx+ digital decoder and extensive sound functions. The regulated high-performance drive ensures powerful operation, with four driven axles and traction tires providing additional pulling power.

A buffer memory bridges short power outages and improves operational reliability. This makes the locomotive not only visually striking but also technically well-equipped for use on H0 AC layouts.

Extensive lighting functions with LED technology

The locomotive features a three-light headlights signal that changes depending on the direction of travel and two red tail lights. These operate conventionally and can be controlled digitally. In addition, the headlights and cab lighting can be controlled digitally and independently.

The headlight on locomotive sides 2 and 1 can each be switched off digitally. If the headlights on both sides are turned off, the double-A light function is available on both sides. The lighting is provided by maintenance-free warm-white and red LEDs.

An Exclusive Highlight for Collections and Layouts

The Märklin 39475 BR 101 “Raw Metal Edition” is a special choice for model railroaders who want to combine modern locomotive technology, sound functions, and an exceptional collector’s design. With a cam-operated coupler and a length over buffers of 21.9 cm, the model integrates seamlessly into H0 train sets.

Enhance your Märklin collection with this exceptional BR 101 and make a bold statement with its raw-metal look, Wacken Open Air design, and modern mfx+ technology.

Features:

• Prototype: Class 101 express locomotive
• Version: “Raw Metal Edition”
• Metallic look of the raw materials
• Transparent protective coating
• Embossed Wacken Open Air logo (W:O:A®)
• mfx+ digital decoder
• Extensive sound functions
• Controlled high-performance drive
• 4-axle drive
• Adhesive tires
• Three-light front signal
• 2 red tail lights
• Headlights and tail lights digitally switchable
• High beams can be controlled separately
• Cab lighting digitally controllable
• Headlights on locomotive sides 2 and 1 can be turned off separately
• Double-A-light function
• Warm white and red LED lighting
• Buffer memory
• Slide-guided coupler
• Length over buffers: 21.9 cm

Specs:

• Gauge: H0
• Rail Company: Misc.
• Era: I
• Color: Silver
• Electricity System: AC
• Analogue / Digital: Digital
• sound: Yes
• News: 2026
• Type: Electric loco

Instruction manual / Safety instructions:

• Manual (2.6 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
