Fleischmann 685101 Rückmeldefähiger decoder für die Spur N Product Details
Fleischmann 685101 Feedback-capable decoder - NEXT18 for N gauge

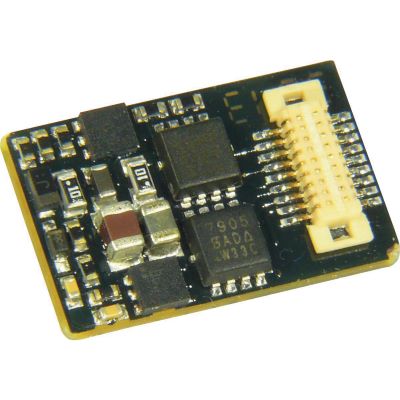

The Fleischmann 685101 decoder is a powerful feedback-capable miniature decoder for N-gauge locomotives. With its compact design and modern NEXT18 interface, this decoder is ideal for installation in smaller locomotives with digital control requirements. It is technically based on the proven ZIMO MX618N and is equipped with numerous innovative features.
Powerful technology in the smallest space
With dimensions of just 15 x 9.5 x 2.8 mm, the decoder can also be easily installed in tight spaces. The maximum load capacity is 0.7 A, which makes it ideal for many N scale models. The decoder offers 4 function outputs as well as 4 logic level outputs, 2 of which can alternatively be used as servo control lines or SUSI outputs.
Versatile protocol support and functionality
The decoder supports DCC, Motorola, RailCom, NMRA standards and ZIMO function mapping, thus offering maximum compatibility for all common digital systems. Thanks to its feedback capability, it is particularly suitable for automated system control with feedback functions.
Perfect for modern digital N-gauge systems
Thanks to its flexible outputs, compact design and extensive range of functions, the Fleischmann 685101 decoder is an excellent choice for demanding N-gauge model railroaders. It unfolds its full potential especially in combination with NEXT18-capable locomotives.
Features:
- Manufacturer: Fleischmann
- Model: Feedback-capable decoder for N scale
- Dimensions: 15 x 9.5 x 2.8 mm
- Current load: 0.7 A
- Connection: NEXT18
- 4 function outputs
- 4 logic level outputs, 2 of which for servo or SUSI
- Protocols: DCC, MM, RailCom, NMRA
- Function: Feedback capable
- Corresponds to: ZIMO MX618N
Specs:
- Gauge: N
- Type: Accessories
