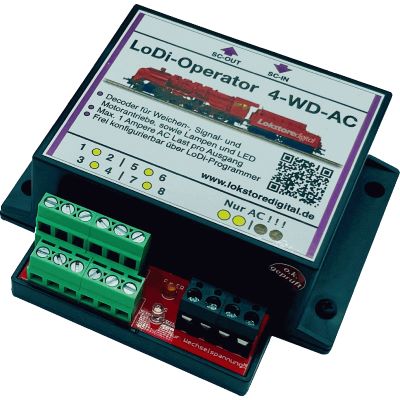

Lokstoredigital LoDi008 LoDi-Operator 4-WD-AC

If you are looking for a really reliable points decoder for your solenoid or motor drives, look no further. The LoDi-Operator 4-WD-AC switches with real AC voltage - an important factor, as almost all solenoid coils on the market are designed for switching with AC voltage. Unfortunately, however, most decoders on the market use DC voltage, which can lead to remanence of the drive. With the LoDi-Operator 4-WD-AC, your drives will always switch perfectly and reliably. In addition, the configuration of the decoder is simple and user-friendly thanks to the LoDi-ProgrammerFX.

You can control up to 4 points or signals with the 8-channel LoDi operator 4-WD-AC. The LoDi-Operator 4-WD-AC is designed for AC voltage between 14 volts and 22 volts. A maximum AC load of 1 ampere is possible per output.

Features:

• AC voltage decoder for the SC bus for connection to the LoDi-Shift-Commander
• 8 channels with 1 ampere per output are available, the total sum of the connected channels must not exceed 2 A
• You can connect all standard motorized switch drives, solenoid coil drives and lamps to the LoDi-Operator 4-WD-AC
• The LoDi-Operator 4-WD-AC is also suitable for other consumers that require alternating voltage, such as stop points or other old coils
• Has a demagnetizing effect for drives with coils
• Each output is separately protected against overload
• Easy to configure via the LoDi ProgrammerFX

Specs:

• Gauge: H0

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
