Lux Modellbau 8831 track vacuum cleaner wagon (DC) analog/digital
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Oberwiesenthal: not on stock *
- Oschatz: can be picked up immediately
- * The product can be delivered to this store within 2-4 business days. Simply select the "Pickup to Store" type of delivery during the checkout prozess.
Share with friends:
Lux Modellbau 8831 track vacuum cleaner wagon (DC) analog/digital Product Details

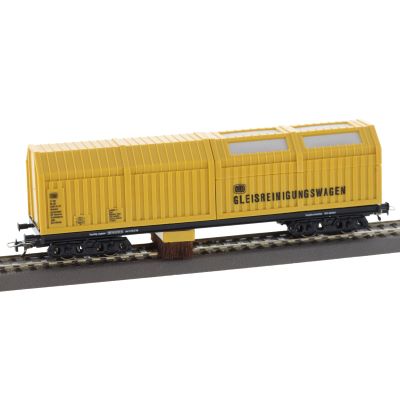

LUX track vacuum cleaner trolley: Efficient cleaning for your model railway layout!
The LUX track vacuum cleaner trolley H0 is the solution for clean tracks - suitable for H0 track and control systems, both analog and digital. With SSF-09 control electronics and a powerful Faulhaber motor, it reliably removes dust and dirt from the air circulation and terrain construction.
The trolley guarantees the functional safety of your model railroad vehicles, ensures trouble-free current collection from the track and center conductor and enables smooth operation. Specially developed to remove loose dirt in the track area, the Lux track vacuum cleaner trolley ensures that precision mechanical components are not impaired. Invest in the reliability of your model railway layout with the Lux track vacuum cleaner trolley H0.
Features:
- Gauge: H0
- Power supply: DC
- Coupling: NEM 362 shaft with KK kinematics
- Clearance: 185 mm
- Power supply 0-24 Volt DC
- Current consumption approx. 200 mA
- Max. Motor voltage 5 Volt DC
- Weight: approx. 140 g
- Height above top edge of rails: 54 mm
- Width 39 mm
Specs:
- Gauge: H0
- News: 2024
- Type: Freight cars
Instruction manual / Safety instructions:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
Frequently asked questions
| Question: | Who is the Lux Modellbau 8831 track vacuum car suitable for? |
| Answer: | The Lux Modellbau 8831 is suitable for H0 model railway users who want to remove dust and loose dirt from their tracks regularly. It is especially useful for DC layouts, tunnels, hidden yards and larger layout areas that are difficult to reach by hand. |
| Question: | Which power system is the car designed for? |
| Answer: | The track vacuum car is designed for H0 DC layouts. It can be used in both analog and digital operation, making it flexible for different operating modes. |
| Question: | How does the track vacuum car work during operation? |
| Answer: | The car is pulled or pushed by a locomotive and removes dust and dirt particles from the track surface. The integrated suction unit collects the particles in the dust container. |
| Question: | Which technical features are important? |
| Answer: | The car is equipped with a high-quality Faulhaber motor, SSF-09 control electronics, automatic start and stop function and a replaceable microfilter. Its length over buffers is 185 mm. |
| Question: | What maintenance is recommended? |
| Answer: | For reliable cleaning performance, the dust container and microfilter should be checked regularly and cleaned or replaced when needed. The suction brush should also be kept clean so the car continues to work effectively over time. |
