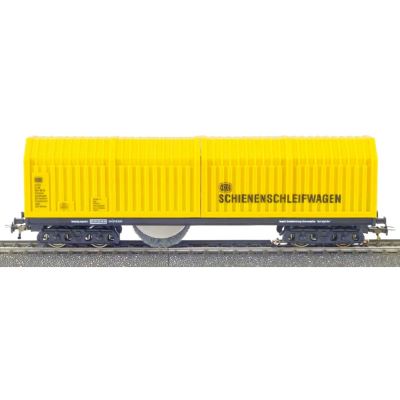

Lux Modellbau 9130 H0 Schienen- und Oberleitungsschleifwagen analogue and digital, AC
Check availability in store:
- Store Oschatz: currently unavailable
Share with friends:
Lux Modellbau 9130 H0 Schienen- und Oberleitungsschleifwagen analogue and digital, AC Product Details
Keep your H0 model layout in good shape with the Lux rail and catenary grinding trolley. Stubborn oil and dirt residues, deposits caused by traction tire abrasion and oxide layers on rails, center conductor and contact wire can be removed more easily with the help of the cleaning trolley.
By installing the innovative and reliable cleaning technology in a rail vehicle, even particularly inaccessible areas of your model layout such as tunnel sections, staging yards and catenary wire-covered track systems can be cleaned without any problems. The maintenance-free operating times of your rail vehicles are significantly increased and safe current collection from the rail, center conductor and contact wire is achieved.
The cleaning trolley is supplied with power via the contact voltage and can be pulled or pushed by standard traction units. It has no drive for locomotion.
The innovative SSF-09 control electronics work on the basis of movement. When the trolley is moved on the powered track, the cleaning technology switches on automatically.
The battery station carried in the grinding carriage and charged via the track voltage buffers the motor of the cleaning technology in the event of a power interruption on the rail (e.g. due to dirt). This means that the rail grinding carriage retains its cleaning effect even on short, de-energized sections of track.
The Lux rail and overhead line grinding trolley is equipped with a polishing wheel as standard. The trolley can optionally be equipped with other cleaning attachments (item no. 9030, 9032, 9033, 9034 and 9036).
Features:
- Track size: H0
- Rail and overhead line grinding car
- removes stuck-on oil and dirt residues
- Removes deposits caused by traction tire abrasion
- removes oxide layers on the rail, center conductor and contact wire
- innovative control electronics SSF-09 works motion-oriented
- High-speed, radial cleaning technology
- Power supply 0-24 Volt AC/DC
- Current consumption approx. 400 mA
- max. motor voltage 5 Volt DC
- Coupling mount according to NEM 362
- Height above top of rails 54 mm
- Length over buffers 185 mm
- Width 39 mm
Specs:
- Gauge: H0
- News: 2024
- Type:
Instruction manual / Safety instructions:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
