Lux Modellbau 9125 H0 Mittelleiterreinigungs-Wagen analogue and digital, AC

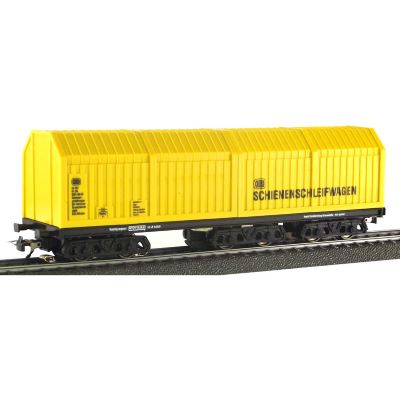

LUX Modellbau 9125 H0 Center Rail Cleaning Car, Analog and Digital, AC

Are you looking for an effective solution to reliably keep the center conductor of your H0 AC layout clean? The LUX Modellbau 9125 H0 Center Conductor Cleaning Car is designed for AC systems and can be used with both analog and digital setups.

The center conductor cleaning car removes stubborn oil and dirt residues, deposits caused by friction from traction tires, and layers of oxidation. This improves current collection from the center conductor and supports trouble-free operation on your model railroad layout.

Center Conductor Cleaning for Hard-to-Reach Areas of the Layout

Manual cleaning is often difficult, particularly in tunnel sections, shadow stations, or on track sections located beneath the overhead wire. Thanks to the cleaning technology integrated into a mobile rail vehicle, even such areas can be easily reached.

The car has no independent drive system and is pulled or pushed by standard traction vehicles. The cleaning system is powered by the traction voltage and operates with an oscillating polishing head mounted in a bogie.

SSF-09 Control Electronics with Automatic Start/Stop Function

The integrated SSF-09 control electronics operate based on movement. When the car is moved along a powered track, the cleaning mechanism turns on automatically. If the activated cleaning car comes to a stop—for example, at a signal stop—the cleaning mechanism turns off automatically.

A battery station carried on the car provides backup power to the cleaning system’s motor during brief power interruptions. This ensures that the cleaning effect is maintained even on soiled or temporarily de-energized track sections.

Problem-Oriented Cleaning of Point Contacts

The center-track-guided and height-adjustable polishing mechanism continuously acts on the center conductor. This highly efficiently removes layers of oxide and dirt from the point contacts. The center conductor cleaner comes standard with 1500-grit cleaning strips.

The 9125 is the successor to part number 9136. Get the LUX Modellbau 9125 H0 center conductor cleaning car and ensure reliable current collection as well as significantly longer maintenance-free operating times for your models.

Features:

• Gauge: H0
• Center conductor cleaning car for the AC (alternating current) system
• Suitable for both analog and digital use
• Includes SSF-09 control electronics
• Automatic start/stop function
• With Faulhaber motor
• Removes stubborn oil and dirt residues
• Removes deposits caused by tire tread abrasion
• Removes oxide layers
• Reliable current draw from the center conductor
• Supports trouble-free operation
• Suitable for hard-to-reach areas of the system
• Suitable for tunnel sections, shadow stations, and track layouts with overhead contact lines
• Mobile center conductor cleaning car
• Is pulled or pushed by standard traction vehicles
• No self-propulsion system
• Close-coupling mechanism
• NEM coupler mounting shaft
• Power supply via a 4-point wheel contact set or a ski-type collector on the bogie
• Oscillating polishing mechanism in the bogie
• Track-centered and height-adjustable polishing technology
• Enclosed drive protected against contamination
• On-board battery unit to buffer the motor in the event of a power interruption
• Equipped as standard with cleaning strips, 1500-grit
• Successor to part number 9136

Technical Specifications:

• Power supply: 0–24 volts AC/DC
• Current consumption: approx. 110 mA
• Maximum motor voltage: 5 volts DC
• Coupling mount per NEM 362
• Weight: approx. 220 g
• Height above top of rail: 54 mm
• Length over buffers: 185 mm
• Width: 39 mm
• Integrated control board protects the motor from overvoltage
• Smooth oscillation of the sliding shoe
• Operation is possible even with half-wave and pulse-width modulation controllers

Specs:

• Gauge: H0
• News: 2026
• Type: Freight cars
