Märklin 39498 steam locomotive Rh 498.1, CSD, Ep. VI (AC current) incl. sound

Märklin 39498 Rh 498.1 CSD Era VI Steam Locomotive: A Masterpiece of Model Construction Technology for Alternating Current (AC)

The Märklin 39498 Rh 498.1 steam locomotive brings the flair of the historic railroad to your model railroad layout and impresses with a high level of detail and technical sophistication. This model is a precise reproduction of the Czechoslovakian class 498.1 express train steam locomotive that was used by the Československé státní dráhy (CSD) in Era VI. As a current model from the year 2022, this locomotive offers an ideal combination of visual and technical advantages and makes it an enrichment for every H0 model railroad layout. The Märklin 39498 stands out from other models especially because of its detailed equipment and the digital control with the mfx+ decoder.

Prototype and History of the Rh 498.1 Steam Locomotive

The class 498.1 of the Czechoslovak State Railways is also known under the nickname "Albatros". These impressive steam locomotives were built in the 1950s and were appreciated for their powerful propulsion and their reliability in express train service. The Märklin 39498 model is based on the museum locomotive 498.104, which is preserved in Bratislava and is very popular on special runs. The locomotive has a striking blue paint scheme and a characteristic appearance that is reminiscent of an era when steam locomotives formed the backbone of express train service.

With Era VI from 2007, the model is listed as a historic locomotive and is a nostalgic eye-catcher on many model railroad layouts. The replica of the Märklin 39498 offers an impressive combination of tradition and modernity with its elaborate design and numerous technical functions.

High quality technology and digital functions of the Märklin 39498

The Märklin 39498 is equipped with the innovative mfx+ digital decoder, which makes numerous functions and precise control possible. The mfx+ decoder makes it possible to easily adjust individual functions and light and sound effects using digital control. The sound functions in particular are a highlight of this steam locomotive, as it offers true-to-original steam locomotive sounds and steam whistles that realistically reproduce the railroad experience. Controlling the model is intuitive, and thanks to the decoder, the locomotive can be seamlessly integrated into digital model railroad layouts.

Another technical highlight is the controlled high-performance drive with flywheel mass, which is located in the locomotive's boiler. This ensures exceptional tractive power so that the locomotive runs reliably and stably even on longer trains. The locomotive also has four driven axles and traction tires, which ensures optimum stability and tractive power, even on steep sections of track.

Richly detailed equipment and authentic light functions

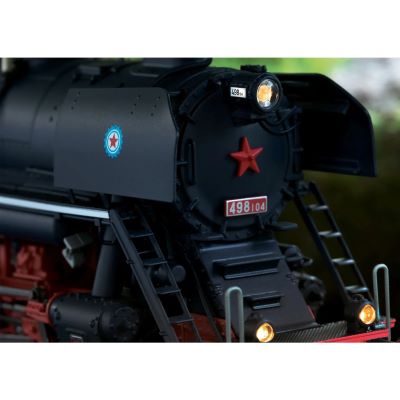

The Märklin 39498 steam locomotive impresses with a variety of lighting effects and details. The three-light headlights change dynamically depending on the direction of travel and the upper headlight can be switched separately for realistic lighting. The illuminated locomotive license plate and the digitally switchable driver's cab lighting provide additional authenticity.

The lighting is provided by long-life warm white LEDs, which ensure uniform and realistic light emission. The built-in smoke insert can also be controlled digitally and ensures dynamic, speed-dependent steam output. This detail, combined with the wheel-synchronized steam output, gives the locomotive an impressive and lively appearance.

Robust construction and optimum flexibility

The body of the locomotive and the tender are made mostly of metal, which makes the Märklin 39498 extremely rugged and durable. This solid construction not only provides stability, but also an authentic appearance on the layout. The adjustable close coupler with kinematics between the locomotive and tender and the kinematics-guided close coupler on the tender allow the model to be flexibly combined with other cars and locomotives so that the Märklin 39498 can be easily integrated into different train compositions.

The locomotive is designed for operation on alternating current (AC) and fits seamlessly into existing H0 AC layouts. The locomotive can run on a minimum radius of R2 = 437.5 mm and can therefore also be used on smaller model railroad layouts without any problems.

Sound and steam: A unique experience for model railroaders

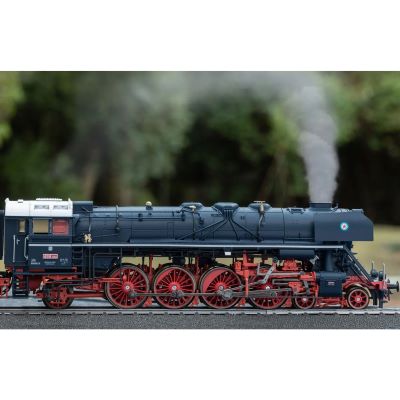

The sound and steam functions of the Märklin 39498 are a real highlight for railroad enthusiasts. The locomotive is equipped with a variety of sounds that can be controlled digitally with the mfx+ decoder. In addition to the authentic steam locomotive sound and the steam whistle, the model also offers other acoustic functions that make the driving experience more realistic. The wheel-synchronized steam output in combination with the dynamic smoke development makes the model an experience for all the senses.

In addition to the sound effects, the steam function ensures a lively representation of the locomotive on the model railway layout. The digitally controllable smoke insert and the wheel-synchronized steam ejections give the Märklin 39498 a unique authenticity and make it an eye-catcher on any model railroad layout.

Perfect for collectors and demanding model railroaders

The Märklin 39498 Rh 498.1 steam locomotive is a must for collectors and passionate model railroaders. Thanks to its sturdy construction and numerous technical functions, this model is suitable for use on large layouts as well as for presentation in a collection. The meticulous workmanship and the many details make the locomotive a masterpiece of model-making technology that is impressive both in operation and as an exhibit.

With the combination of high-quality materials, extensive digital functions and an authentic replica of the Czechoslovakian express steam locomotive, this model offers everything that model railroaders could wish for. The sound and light functions in particular, as well as the steam development, ensure a fascinating driving experience that is hard to beat in terms of authenticity.

Features:

• Gauge size: H0
• Alternating current (AC)
• Length over buffers: 293 mm
• Minimum passable radius: R2 = 437.5 mm
• Adjustable close coupler with kinematics between locomotive and tender
• Short coupling with kinematics on the tender with NEM shaft
• Digital decoder mfx+ with extensive light and sound functions
• Regulated high-performance drive with flywheel mass in the boiler
• Drive via 4 axles
• Traction tires
• Locomotive and tender largely made of metal
• Smoke insert installed as standard, digitally switchable
• Triple headlights that change over with the direction of travel
• Upper headlights can be switched separately
• Illuminated locomotive number plate
• Driver's cab lighting can be controlled digitally
• Lighting with maintenance-free warm white LEDs
• Railroad company: CSD
• Era: VI
• Color: Blue
• Power system: Alternating current
• Sound: Yes
• Novelties: 2022
• Type: Steam locomotive

Specs:

• Gauge: H0
• Rail Company: CSD
• Era: VI
• Color: Blue
• Electricity System: AC
• Digital: Yes
• sound: Yes
• News: 2022
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (5.31 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
