PROXXON 4528515 Modellbauer- und Gravierset with MICROMOT 60/E

The PROXXON model making and engraving set with MICROMOT 60/E is highly precise and multifunctional. Infinitely variable speed control with feedback effect ensures high pulling power in the lower speed range. Even the smallest shanks are clamped absolutely centrically thanks to the high-quality MICROMOT steel collets and ball-bearing spindle. Housing made of glass fiber reinforced POLYAMIDE with comfortable soft components in the handle area. 20 mm system fit for flange-mounting MICROMOT accessories. All further details on this product can be found under features.

Features:

• High-precision and multifunctional use
• Infinitely variable speed control with feedback effect ensures high pulling power in the lower speed range
• Even the smallest shafts are clamped absolutely centrically thanks to high-quality MICROMOT steel collets and ball-bearing spindle
• Housing made of glass fiber reinforced POLYAMID with comfortable soft components in the grip area
• 20 mm system fit for flange-mounting MICROMOT accessories

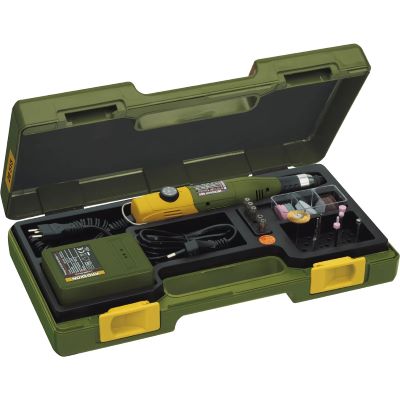

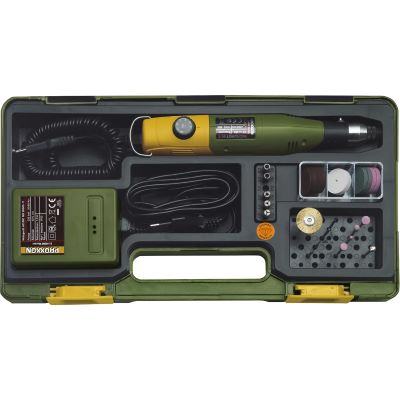

Accessories included in the scope of delivery:

• 1 diamond grinding pin
• 1 fine milling cutter
• 1 micro drill 0.5 mm
• 1 micro drill 1.0 mm
• 1 brass brush
• 4 mounted points made of aluminium oxide (cylinder, ball, wheel and cone)
• 1 polishing wheel
• 1 grinding wheel made from aluminium oxide
• 1 grinding wheel made of silicon carbide
• 20 cut-off wheels
• 1 tool holder
• 6 MICROMOT steel collets (1.0 to 3.2 mm)
• 1 power supply unit for 220 to 240 V connection (output power 12 V at 1.0 A)

Technical data:

• 12 - 18 V, power consumption up to 40 W, speeds: 5,000 to 20,000 rpm

Instruction manual / Safety instructions:

• Safety instructions (1.63 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
