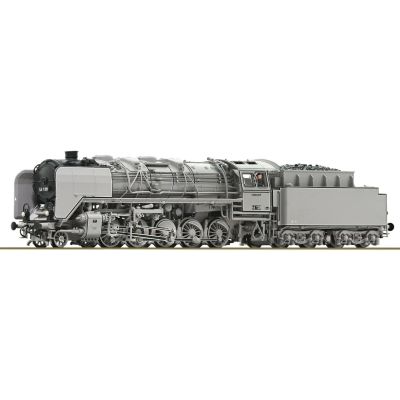

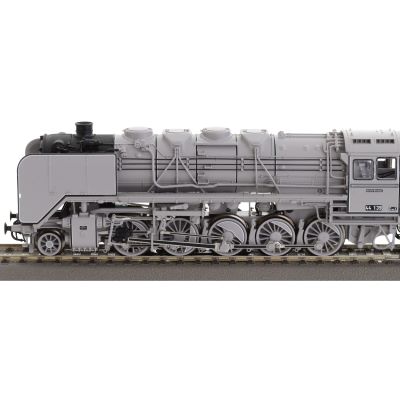

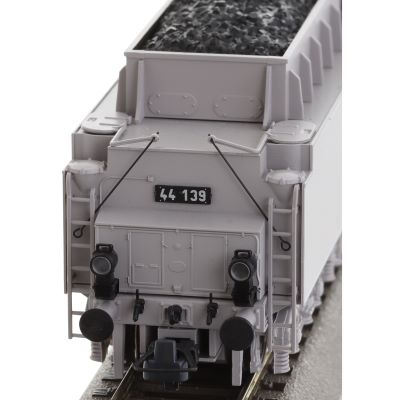

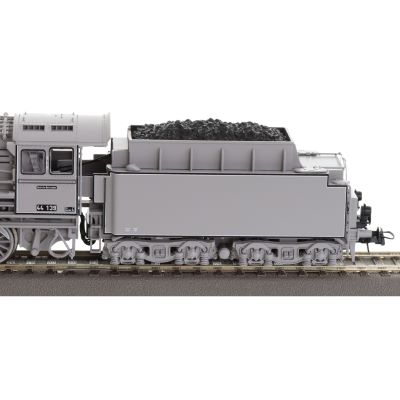

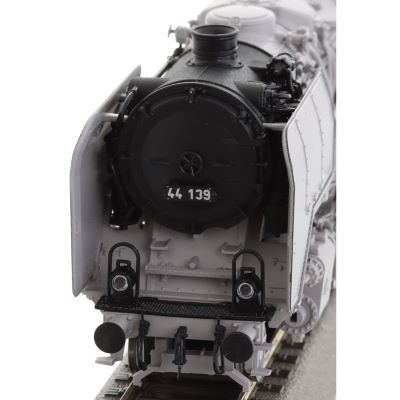

Roco 79041 steam locomotive BR 44, DRG, Ep. II (incl. sound) AC current/AC

The standard locomotive program of the Deutsche Reichsbahn-Gesellschaft (DRG) also included the development of a powerful freight locomotive. The locomotive, known as the BR 44, with a drilling engine was expected to be able to haul freight trains of up to 1,200 tons in low mountain ranges and up to 600 tons over steep ramps. In 1926, the first 10 machines with the 1'E h3 axle arrangement were delivered. This locomotive only went into series production from 1937 onwards, following the increased demands of train haulage, and was procured in large numbers in various versions. Until they were replaced by modern diesel and electric locomotives, the class 44 locomotives formed the backbone of the heavy freight train service throughout Germany.

The photographic paint was a special paint job applied by the locomotive factories to special locomotive specimens in order to achieve a better representation in photographs at the time. This consisted of washable (lime) paint and was only applied for the purpose of photographic work.

Features:

• Roco - German State Railroad Company class 44 steam locomotive
• Drive on two axles of the tender and via cardan shaft on all five driving axles of the locomotive
• Photographic paint
• Wagner wind deflectors
• Finely detailed model with many separately attached parts
• Metal wheels with filigree spokes
• Smoke generator can be retrofitted
• NEM 362 coupling shaft with KK kinematics on the tender
• Minimum radius 358 mm
• Flywheel mass Yes
• Number of powered axles 7
• Number of axles with traction tires 2
• H0 gauge
• Era II
• DRG railroad company
• Smoke generator Item number (digital) Seuthe No. 11
• Motor 5-pole motor
• Smoke generator can be retrofitted Yes
• Headlights 2 headlights / digitally switchable
• Power system 3L alternating current
• Interface Electrical interface for traction units to NEM 652 with plug-in device
• Digital decoder NEM 652
• Decoder type MX645R
• Sound Yes
• Length over buffers 260 mm

Specs:

• Gauge: H0
• Rail Company: DRG
• Era: II
• Color: Grey
• Electricity System: AC
• Digital: Yes
• sound: Yes
• News: 2021
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (1.26 MB)
• Manual (543.85 KB)
• Manual (105.87 KB)
• Manual (879.85 KB)

Downloads:

• Spare Parts (12.37 KB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
