Schönwitz 50157 Stromverteiler MoBa Verteiler V2 Fertigbaustein

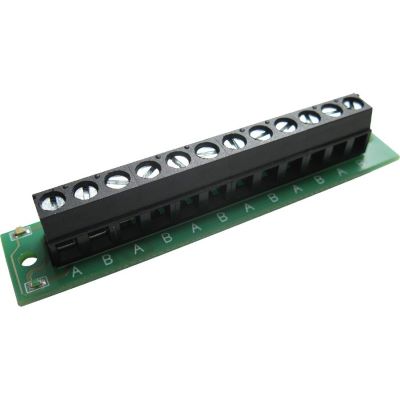

Thanks to the MoBa distributor V2, it is possible to wire conveniently under the model railway layout. New consumers or track sections can be quickly supplied with power via the high-quality screw terminals. All terminal points marked "A" are connected through, as are all points marked "B". There is a "B" terminal next to each "A" terminal. This allows you to connect your loads clearly without cable chaos. The status LEDs allow you to see at any time under the system whether there is voltage on the circuit board or not, without having to measure it.

If both LEDs light up, there is AC voltage at "A" and "B". If only the green LED is lit, there is a DC voltage with plus at "A" and minus at "B". If only the yellow LED is lit, there is a DC voltage with plus at "B" and minus at "A".

Features:

• 12 terminal points - 6x "A" and 6x "B"
• Status LEDs
• Current carrying capacity per terminal - max. 8A
• Total current carrying capacity - max. 8A
• Cross-section per terminal - max. 1.5 mm²
• Maximum voltage - 30V AC / DC / digital voltage
• Cross-section - max. 1.5 mm²
• Approx. dimensions (L x W x H) - 75 mm x 15 mm x 13 mm
• 2 drill holes for PCB mounting
