Schönwitz 50172 Schrumpfschlauch 2,4 mm auf 1,2 mm, 1 Meter (transparent)
Check availability in store:
- Store Oschatz: can be picked up immediately
Share with friends:
Schönwitz 50172 Schrumpfschlauch 2,4 mm auf 1,2 mm, 1 Meter (transparent) Product Details

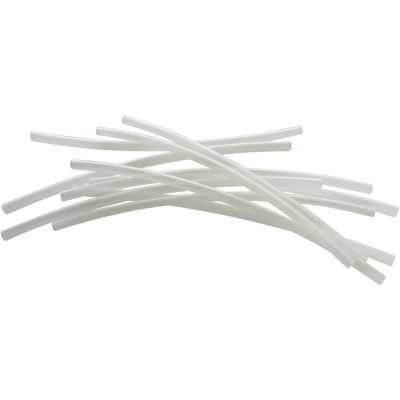

The Schönwitz 50172 heat shrink tubing has a diameter of 2.4 mm before shrinking and reduces to 1.2 mm after shrinking. Available in transparent and with a length of 1 meter, this heat shrink tubing is ideal for insulating and protecting cables and wires without impairing the view of the underlying material. The tubing is made from flexible material that constricts with heat to provide a precise and secure connection. It is particularly useful for applications in model making, electronics or wiring work where unobtrusive and clear insulation is required.
The heat shrink tubing is intended for professional use due to its very good chemical, mechanical and electrical properties. It guarantees perfect electrical insulation and offers protection against corrosion and mechanical stress.
Supplied with 1 meter of heat-shrink tubing, pre-cut into 10 pieces of 10 cm each.
Features:
- Material: radiation cross-linked polyolefin
- Color: colorless / transparent
- Diameter before shrinking: 2.4 mm
- Diameter after shrinkage: 1.2 mm
- Shrink ratio: 2:1
- Wall thickness after shrinkage: 0.50 mm
- Shrink temperature: '110 °C
- Longitudinal shrinkage: max. 10 %
- Application temperature: -55 °C to +135 °C
- Tensile strength: 19.0 MPa
- Flammability: self-extinguishing
- Dielectric strength: =26 kV / mm
- Tested according to: UL224, CSA 400-U-9
- High resistance to: acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
