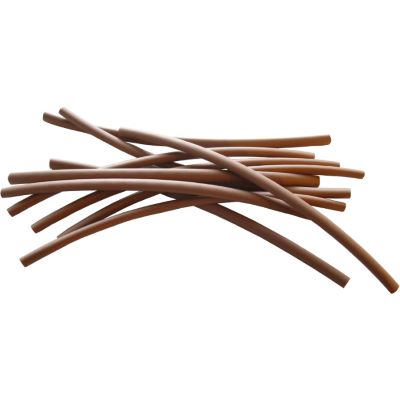

Schönwitz 50177 Schrumpfschlauch 2,4 mm auf 1,2 mm, 1 Meter (braun)

The Schönwitz 50177 heat shrink tubing has a diameter of 2.4 mm before shrinking and reduces to 1.2 mm after shrinking. With a length of 1 meter and available in brown, this heat shrink tubing is ideal for insulating and protecting cables and wires. The flexible material shrinks through heat and provides a precise and secure connection. Ideal for model making, electronics or other applications where natural coloring and reliable insulation are required.

The heat shrink tubing is intended for professional use due to its very good chemical, mechanical and electrical properties. It guarantees perfect electrical insulation and offers protection against corrosion and mechanical stress.

Supplied with 1 meter of heat-shrink tubing, pre-cut into 10 pieces of 10 cm each.

Features:

• Material: radiation cross-linked polyolefin
• Color: brown
• Diameter before shrinking: 2.4 mm
• Diameter after shrinkage: 1.2 mm
• Shrink ratio: 2:1
• Wall thickness after shrinkage: 0.50 mm
• Shrink temperature: '110 °C
• Longitudinal shrinkage: max. 10 %
• Application temperature: -55 °C to +135 °C
• Tensile strength: 15.0 MPa min (ISO 37)
• Flammability: self-extinguishing
• Dielectric strength: =24 kV / mm
• Tested according to: UL224, CSA 400-U-9
• High resistance to: acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
