NEW Schönwitz 50291 SMD 0201 LED with red enameled copper wire, 10 pieces

Schönwitz 50291 LED SMD 0201 with red enameled copper wire, 10 pieces

Are you looking for particularly small LEDs for delicate lighting applications in model making where space is extremely limited? The Schönwitz 50291 SMD 0201 LED with red enameled copper wire is an extremely compact LED solution and is ideal for delicate lighting, signals, model vehicles, or detailed craft projects.

This version is the smallest mass-produced LED in the 0201 package, pre-soldered with 0.15 mm thin, insulated enameled copper wire. This allows the LED to be used even in very tight installation spaces.

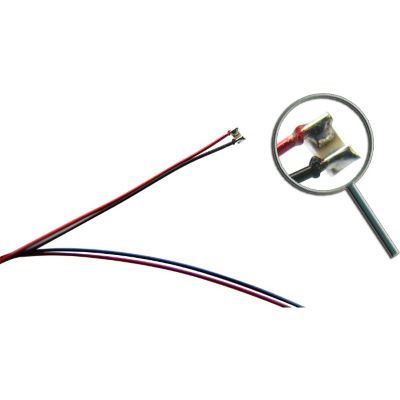

SMD LED 0201 with pre-soldered enameled copper wire

The enameled wires are color-coded for easy identification: the positive terminal is red, and the negative terminal is black. This simplifies wiring and ensures a clean finish during installation.

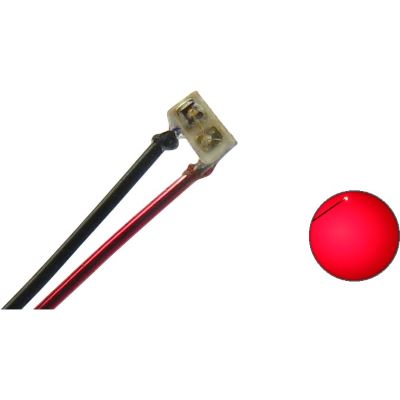

Red LED for the finest lighting details

With its red light color, this LED is particularly suitable for applications requiring small, clearly visible light points. Thanks to its very small dimensions of 0.65 mm x 0.35 mm x 0.2 mm, it can be used even where larger LEDs cannot fit.

Get the Schönwitz 50291 LED SMD 0201 Set and equip your models with exceptionally fine red lighting elements.

Features:

• Light color: red
• Voltage: typ. 1.95 V
• Current: max. 20 mA
• Beam angle: approx. 135°
• Luminous intensity: approx. 105 mcd
• Dimensions (L x W x H): 0.65 mm x 0.35 mm x 0.2 mm
• Housing color: clear
• Connecting wires: 0.15 mm red and black enameled copper wire, each approx. 150 mm long
• Polarity: Positive terminal red, negative terminal black
• Pre-soldered
• Enameled wires dyed

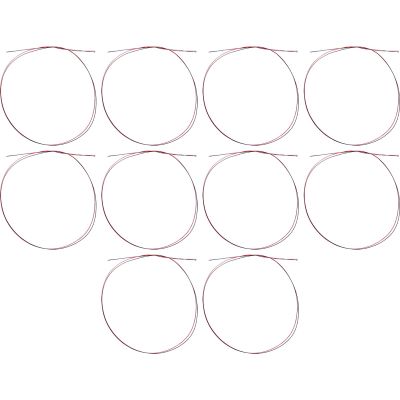

• Package contents: 10 SMD 0201 LEDs with red enameled copper wire

Specs:

• Type: Accessories

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
