Schönwitz 50316 10mA Mini Miniatur Konstantstromquelle für LEDs KSQ2 (1 Stück) Product Details
316 miniature constant current source KSQ2 for LEDs - Reliable current limitation to 10 mA
The 316 miniature constant current source KSQ2 from Schönwitz is an innovative alternative to the classic series resistor and enables a constant power supply for LEDs. With the precise electronics of this constant current source, the current is limited to a maximum of 10 mA so that LEDs always light up evenly and reliably in a voltage range from 4V to 24V DC or AC. This solution is ideal for demanding model building projects where stability and efficiency are crucial.
Constant power supply for up to 11 LEDs
The KSQ2 offers the option of connecting up to 11 LEDs in series and supplying them with a constant power supply. For parallel connections, the current can be divided up so that even complex lighting systems can be implemented without any problems. The precise current limitation ensures that the LEDs light up evenly and are not overloaded, which extends their service life.
Flexible application options and simple installation

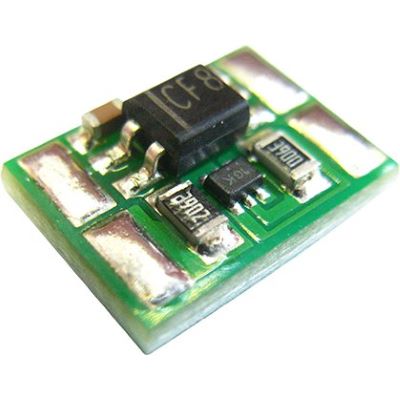

The module has a particularly compact design, with a length of 11 mm, a width of 8 mm and a height of just 3.5 mm. Weighing just 0.35 g, it can be easily integrated into a wide variety of projects. The generous connection pads enable uncomplicated wiring, while the compatibility with DC and AC voltage ensures flexible use. Unlike the KSQ1, the KSQ2 can be connected directly to an AC transformer, making the installation even more versatile.
Universal use for different track gauges
The KSQ2 is ideal for model railroads in TT, H0 and G gauges. It is particularly useful in projects where precise and uniform LED lighting is required, such as the illumination of buildings, wagons or street lamps. Its easy handling and high reliability make it an indispensable component for model building enthusiasts.
Simple replacement and innovative technology
The constant current source is installed in the circuit like a conventional series resistor, replacing the need to select and calculate series resistors for each LED individually. This saves time and ensures professional implementation. The KSQ2 ensures that LEDs are constantly supplied with power even with different input voltages, which enables stable and flicker-free lighting.
Conclusion: Efficient power source for demanding LED projects
The 316 miniature constant current source KSQ2 is a practical and reliable solution for powering LEDs in model building projects. With its compact design, flexible use for DC and AC voltage and the ability to connect up to 11 LEDs in series, it offers maximum efficiency and easy handling. This constant current source is ideal for model builders who want to upgrade their projects with modern technology.
Features:
- Manufacturer: Schönwitz
- Gauge: TT, H0, G
- Upper current limit: 10 mA
- Operating voltage: 4V to 24V AC/DC
- Dimensions: 11 mm (L) × 8 mm (W) × 3.5 mm (H)
- Weight: 0.35 g
- Up to 11 LEDs can be connected in series (depending on LED type and input voltage)
- Parallel connection possible
- Generous connection pads
