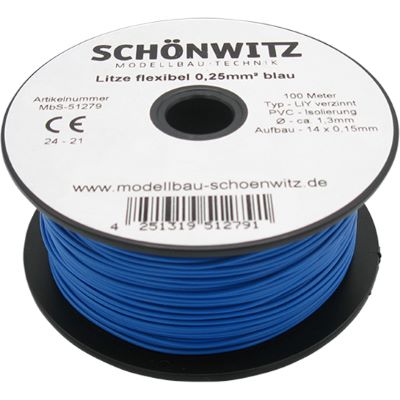

Schönwitz 51279 Miniaturkabel Litze flexibel LIY 0,25mm², 100 Meter (blau)

Quality cable from a German manufacturer.

This cable has already proven itself many times over. It has excellent processing properties and is ideal for use in model building, e.g. for wiring modules, segments, points, lighting and motors. Supplied on a sturdy plastic bobbin.

Features:

• Color: blue
• Content: 100 m
• cross-section: 0.25 mm²
• Conductor construction: 14 × 0.15 mm
• Strand: tinned copper
• Outer diameter: approx. 1.3 mm
• Insulation: PVC according to VDE 0207 / EN 50363-3
• Test voltage: 2500V AC
• Operating voltage: max. 900V AC
• Insulation resistance: min. 20 MOhm x km at 20 °C
• Conductor resistance: max. 79.90 Ohm/km at 20 °C
• Static temperature range: -30 to 70 °C
• Dynamic temperature range: -5 to 70 °C
• Bending radius static: 5.0 x outer diameter
• Bending radius dynamic: 10.0 x outer diameter
• Standard: in accordance with VDE 0812
• flame-retardant IEC 60332-1; EN 50265; VDE 0482-265 self-extinguishing
