tams elektronik 53-04046-01 LC-NG-04 Fertig-Baustein Product Details

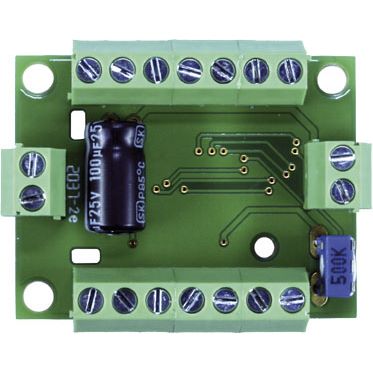

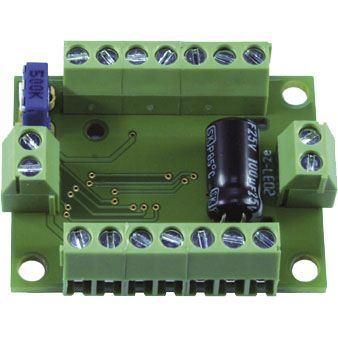

Light Computer Next Generation LC-NG-04 for office and street lamps. Ready-to-use module (assembled and tested).
14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors).
Program variant 1 "Modern street lamps": When switched on, the lamps slowly become brighter before they reach their final brightness. Each time they are switched on, the lighting flickers at a different output, simulating a faulty street lamp.
Program variant 2 "Gas lanterns": The lanterns slowly become brighter after being switched on and flicker independently of each other in individual patterns. During operation, the brightness fluctuates (due to "gas pressure fluctuations"). After switching off, the lanterns initially light up with less brightness before going out completely.
Features:
- 14 outputs for connecting LEDs, lamps or downstream circuits
- Switching inputs: 1
- Connection for the light in the communal stairwell
- Current consumption: approx. 40 mA
- Max. total current: 1,000 mA
- For analog and digital model railroad layouts
- For all nominal sizes
- Ready-built module (assembled and tested)
