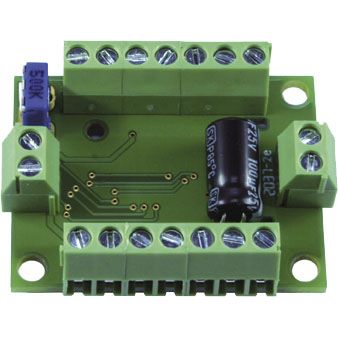

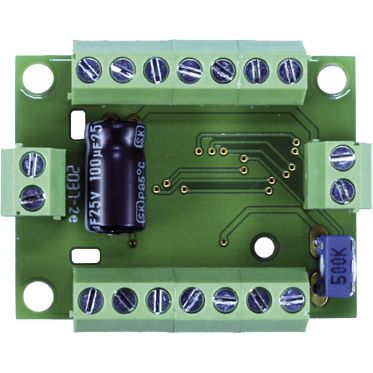

tams elektronik 53-04057-01 LC-NG-05 Fertig-Gerät

Light Computer Next Generation LC-NG-05 for road traffic. Ready-to-use device.

14 outputs (max. 200 mA each) for connecting bulbs or LEDs (via series resistors).

Features:

• 14 outputs for the connection of LEDs, lights or downstream circuits
• 1 output for an additional hazard warning light: This is switched on during the green and yellow phases of traffic light 1 (e.g. to safeguard a crosswalk)
• 1 output for a speed trap: This is triggered at irregular intervals
• 5 outputs for lighting "stationary" or "moving" cars
• 1 output for connecting a loudspeaker (horn), which is triggered at irregular intervals. The sound of the horn is stored on the IC
• max. total current: 1,000 mA
• For analog and digital model railroad layouts
• For all nominal sizes
• Ready-to-use device

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
