tams elektronik 53-04086-01 LC-NG-08 Fertig-Baustein

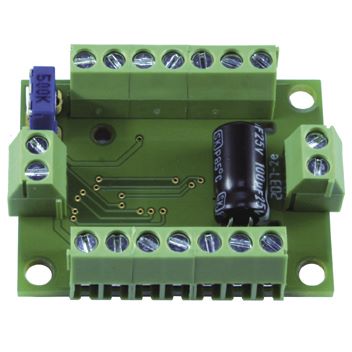

Light Computer Next Generation LC-NG-08 for a fire station. Ready-to-use module (assembled and tested).

14 outputs (max. 200 mA each) for connecting light bulbs, LEDs (via series resistors), a loudspeaker (impedance at least 8 Ohm, recommended at least 32 Ohm) and a servo (external power supply, e.g. servo board required).

Features:

• 1 output for connecting a loudspeaker that reproduces the siren or a siren. The sound is stored on the IC
• 5 outputs for controlling the flashing lights of (several) emergency vehicles
• 1 output for connecting one or more servos that open the fire station gate(s)
• 1 output that is switched on and off in parallel with the servo output
• 6 outputs for the lighting in the fire station
• 1 output for a warning light
• max. total current: 1,000 mA
• For analog and digital model railroad layouts
• For all nominal sizes
• Ready-built module (assembled and tested)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
